Drain Hydraulic Fluid

Due to seasonal changes, periodic hydraulic fluid change may be required.

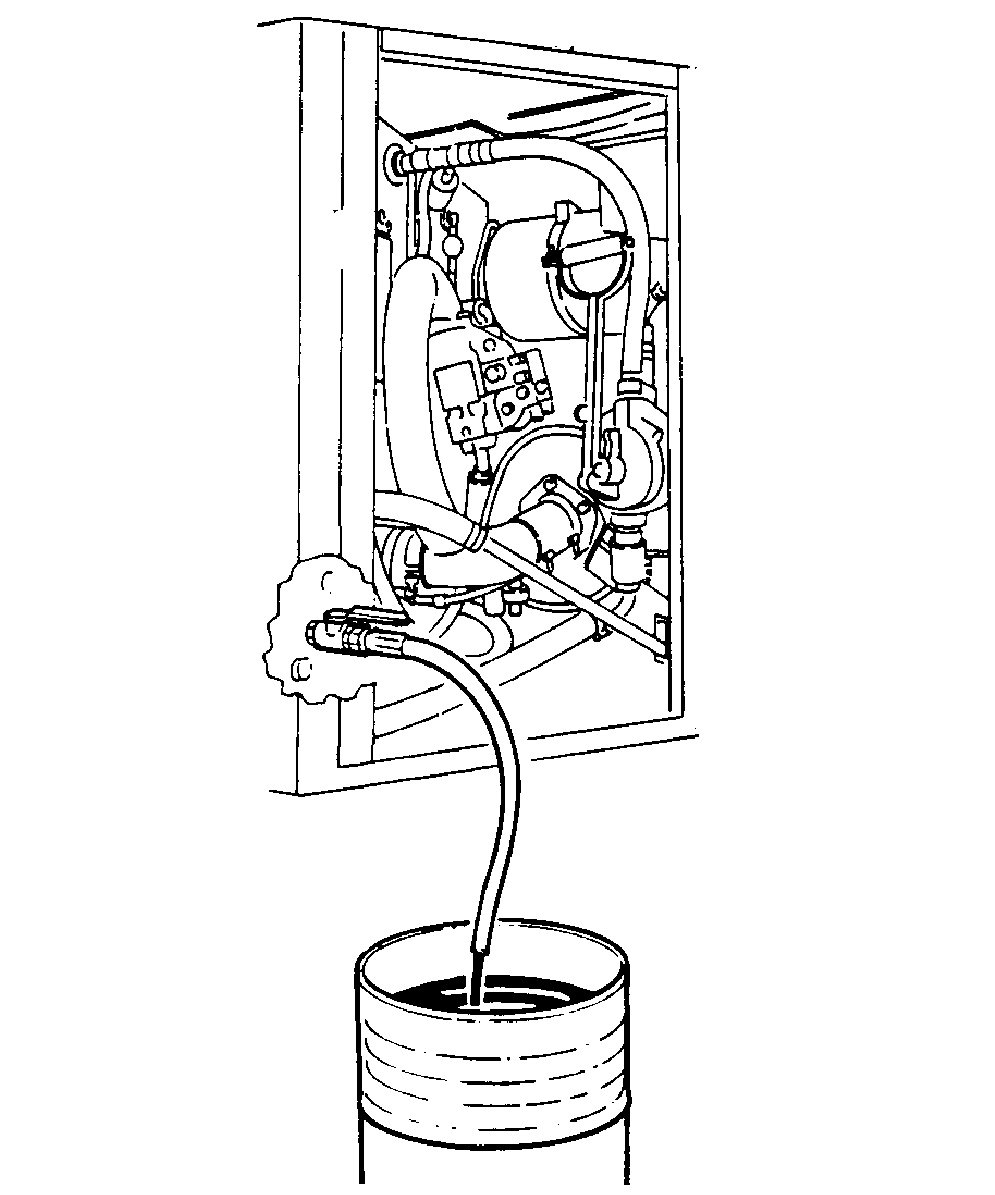

1. Press breather button in to release the air pressure.

2. Remove the end cap from the hydraulic tank drain valve and attach a suitable drain hose (with a #16 JIC female fitting) to the end of the drain valve.

3. Place the drain hose in a suitable container.

4. Open the drain valve and drain the hydraulic fluid into the container.

5. Refer to Section 3-1 for recommended replacement fluid.


1-Breather
2-Cap

T147038
T147118

MR64971,0000074 -19-05DEC01-1/1
