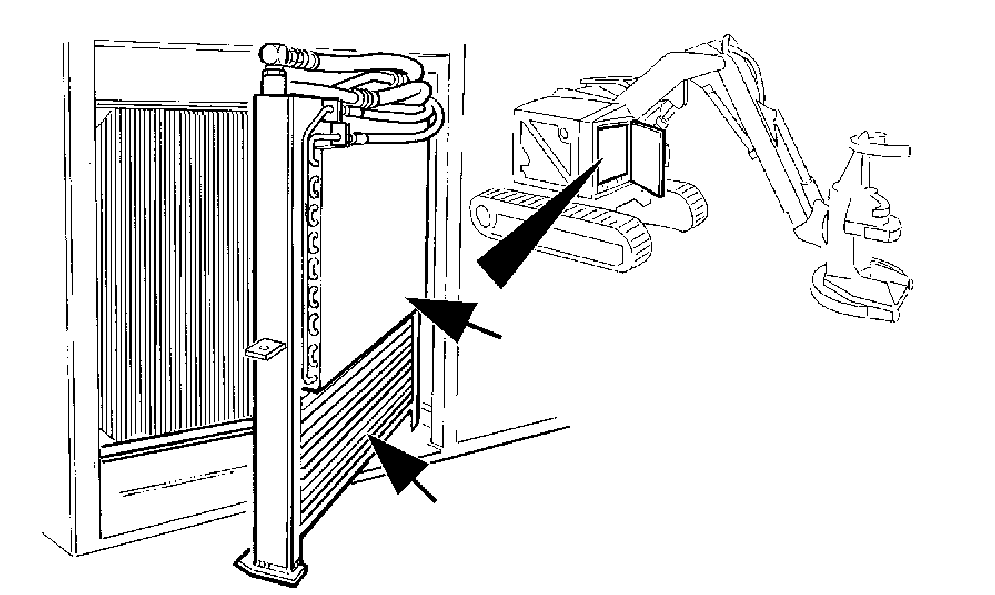

Check and Clean Radiator, Oil Cooler and Condenser Fins

Check and clean the fins with a water soluble cleaning agent or with compressed air (oil cooler and condenser shown only).

NOTE: Radiator is accessible by removing locking pin and swinging oil cooler out. Be sure to replace the locking pin after cleaning.

MR64971,000007B -19-05DEC01-1/1
