Check Swing Drive Gearbox Oil Level

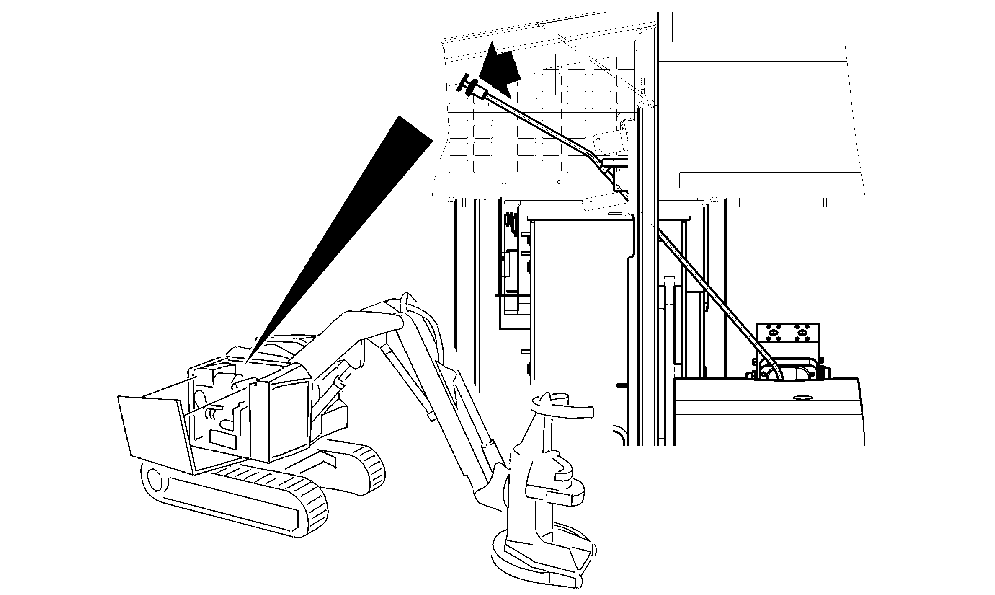

Check the oil level on the dipstick, located on the engine compartment wall. If necessary, add oil through the dipstick tube. See Section 3-1 for recommended gear oil.

T147058

MR64971,0000080 -19-05DEC01-1/1
