Lubricate Swing Pinion and Bearing

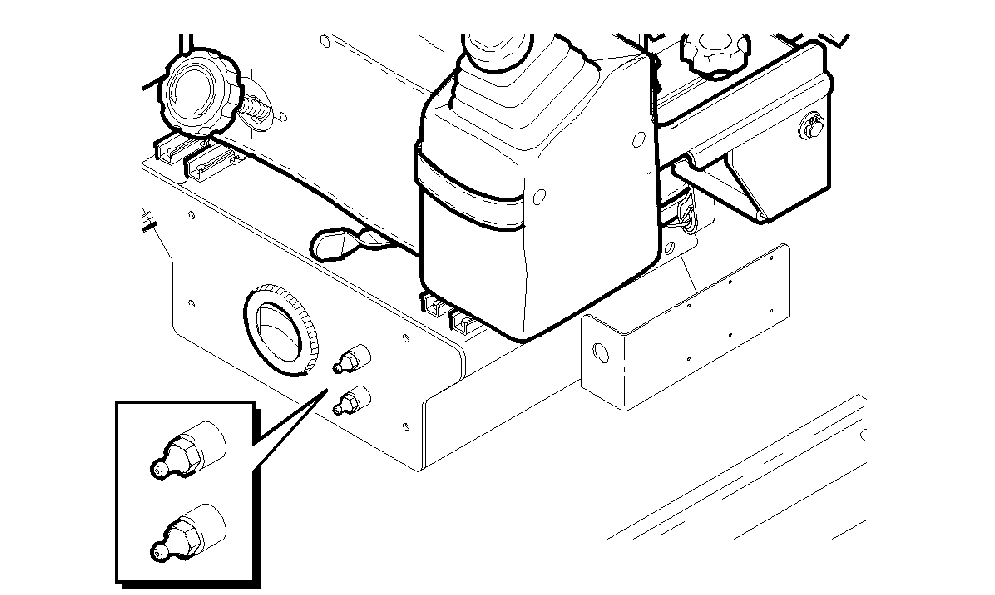

Pump ten shots of recommended grease into each fitting under the operator's seat while rotating the upper assembly.

NOTE: The upper fitting lubricates the Ring Gear Bearing and the lower fitting lubricates the Swing Pinion.

MR64971,0000083 -19-05DEC01-1/1
