Check Engine RPM

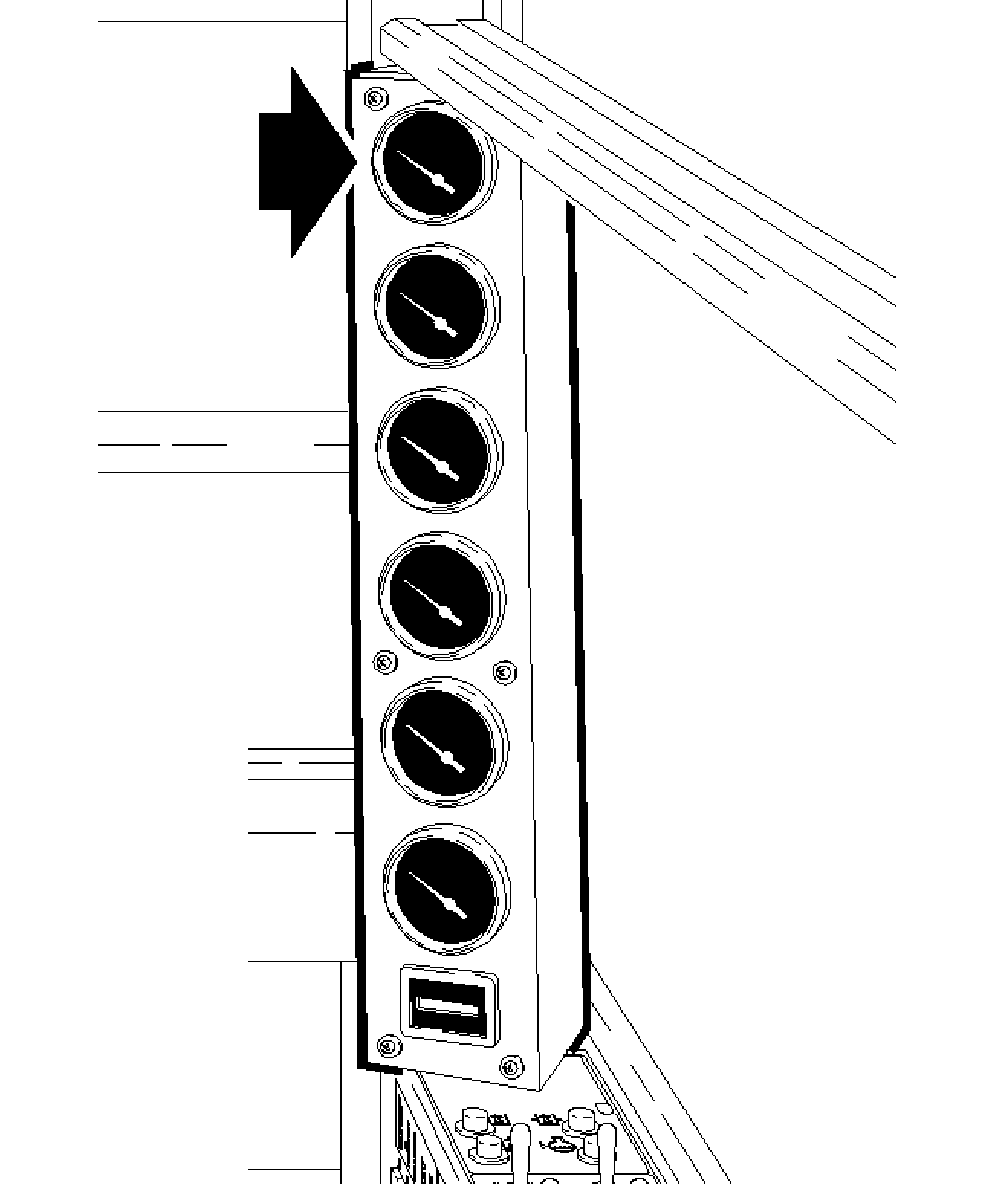

Check Engine RPM on the tachometer. Adjust, if necessary.

T147064
Item Measurement Specification

High Idle (no load)

Speed 2160 +/- 50 rpm

Low Idle (6CT8.3)

Speed 900 rpm

Low Idle (6CTA8.3)

Speed 950 rpm

MR64971,000008D -19-05DEC01-1/1
