Check Hydraulic Motor Mounting Bolts

Check the torque on the hydraulic motors mounting bolts. Tighten, if necessary.

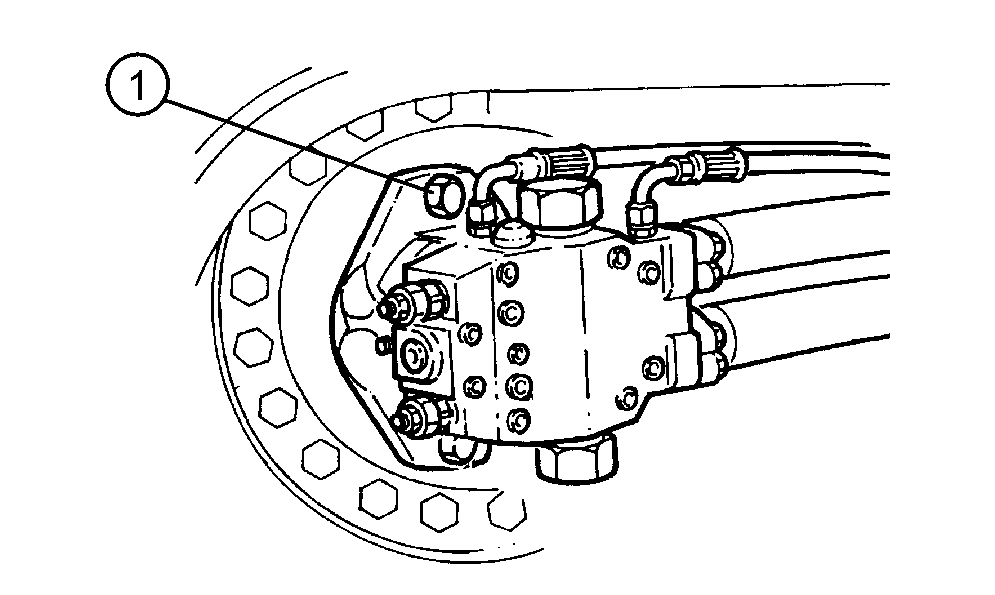

T147067


1-Traction Drive Motor Mounting Bolts

Item Measurement Specification

Swing Drive Motor Mounting Bolts

Torque 203 N·m (150 lb-ft)

Traction Drive Motor Mounting Bolts

Torque 366 - 393 N·m (270 - 290 lb-ft)

MR64971,0000090 -19-05DEC01-1/1
