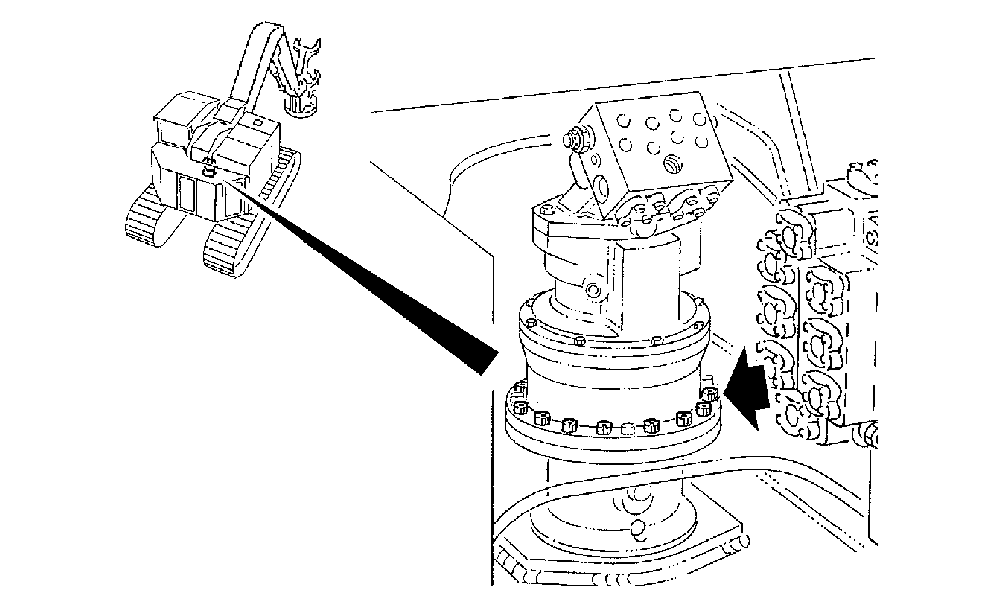

Check Swing Gearbox Bolt Torque

Check swing gearbox mounting bolt torque. Tighten, if necessary.

T147072
Item Measurement Specification

Swing Gearbox Bolts

Torque 149 - 163 N·m (110 - 120 lb-ft)

MR64971,0000097 -19-05DEC01-1/1
