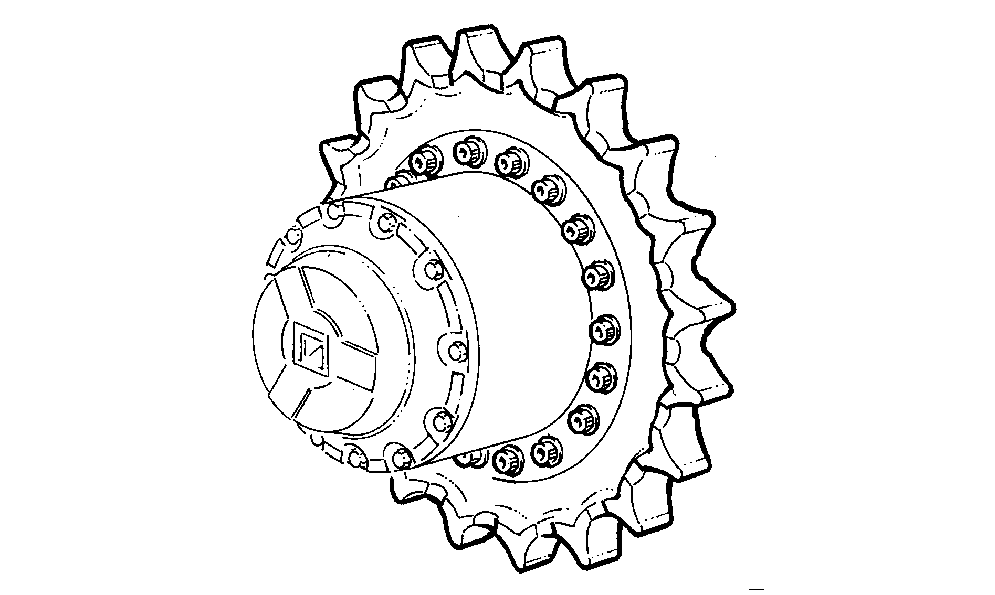

Check Planetary And Sprocket Mounting Bolt TorqueCheck planetary and sprocket mounting bolt torques. Tighten, if necessary. |
|
|
| Item | Measurement | Specification |
|---|---|---|
|
Planetary And Sprocket Mounting Bolts |
Torque | 610 - 644 N·m (450 - 475 lb-ft) |
|
NOTE: Planetary bolts not shown.
|
