Check Initial Track Shoe Bolt Torque

Check Initial Track Shoe Bolt Torque.

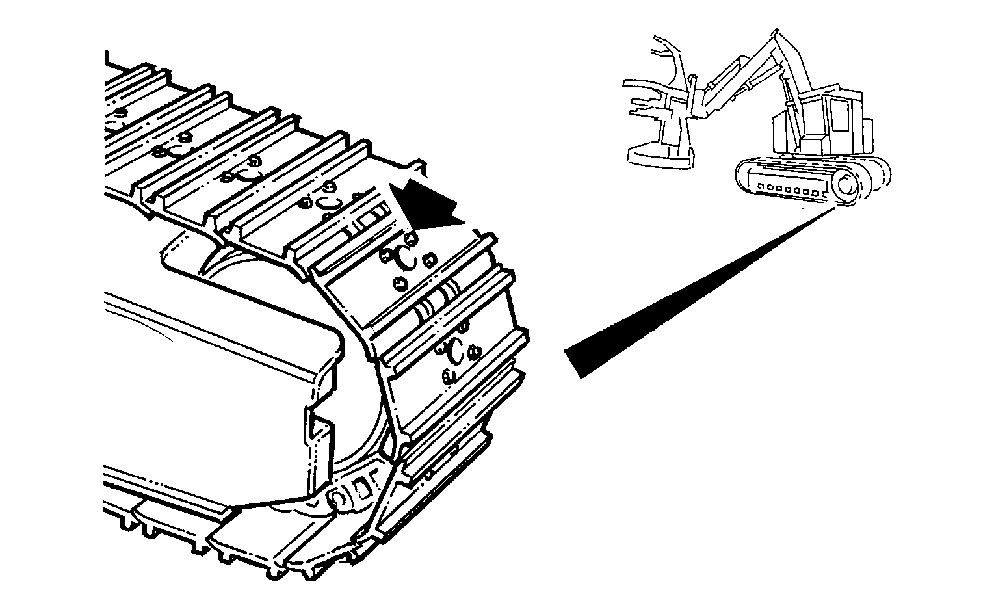

T147079
Item Measurement Specification

Track Shoe Bolt

Inspection Torque 570 N·m (420 lb-ft)

If bolts turn at this torque value, loosen bolt and retorque to the specified value.

Specification

Track Shoe Bolt -Torque 300 ± 54 N·m (220 ± 40 lb-ft) plus an additional 1/3 turn

MR64971,00000A0 -19-05DEC01-1/1
