Change Engine Oil And Filter

1. Remove the retaining bolt and swing the battery box fully open.

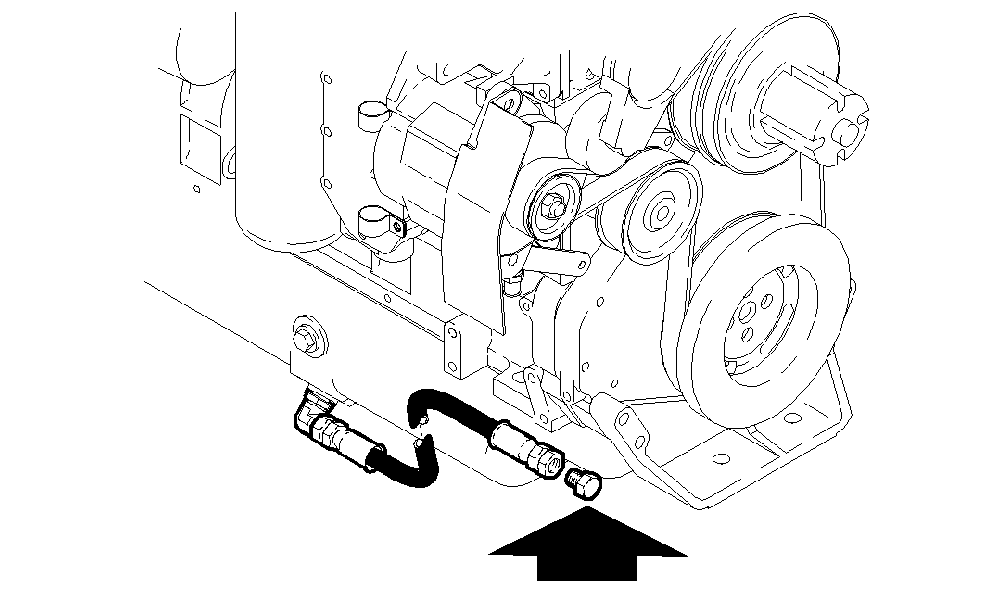

2. Take out the plug from the drain hose and drain the engine oil into a suitable container.

3. Replace the plug after all of the oil has been drained.

T147104

MR64971,00000A4 -19-05DEC01-1/3

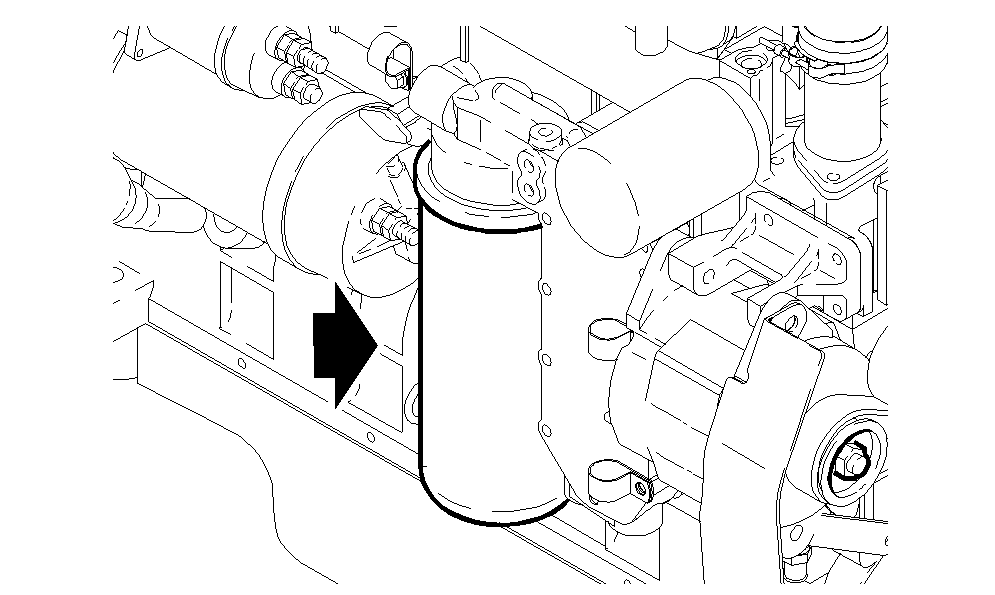

4. Change the oil filter. Fill the new filter with fresh oil. See Section 3-1 for recommended engine oil.

T147105

MR64971,00000A4 -19-05DEC01-2/3

5. Fill the engine with fresh oil through the oil filler tube.

T147047

MR64971,00000A4 -19-05DEC01-3/3
