Change Engine Fuel Filters

Change the fuel filters using the following procedure:

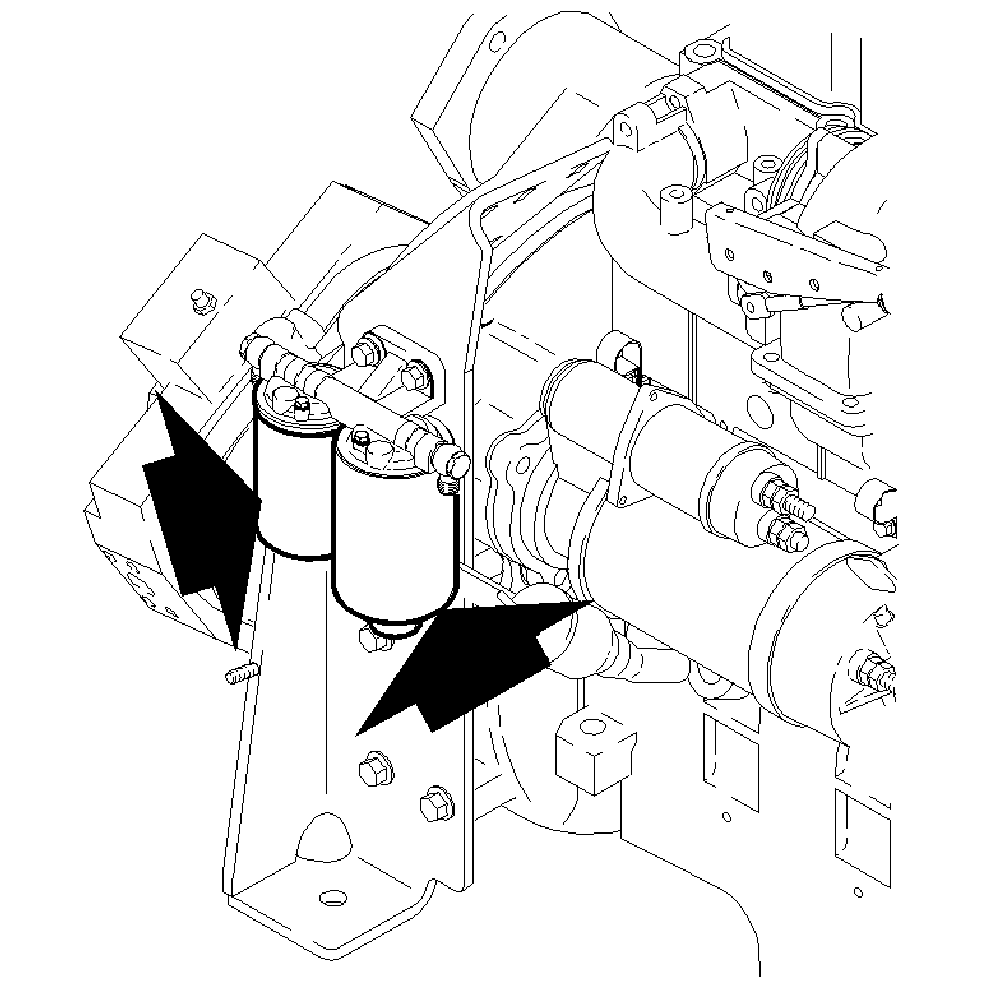

1. Clean the area around the filter heads.

2. Remove the filters.

3. Clean the gasket surface of the filter head

4. Fill new filters with clean fuel. See Section 3-1 for recommended diesel fuel.

5. Install the new filters on the filter head.

T147111

MR64971,00000AA -19-05DEC01-1/2

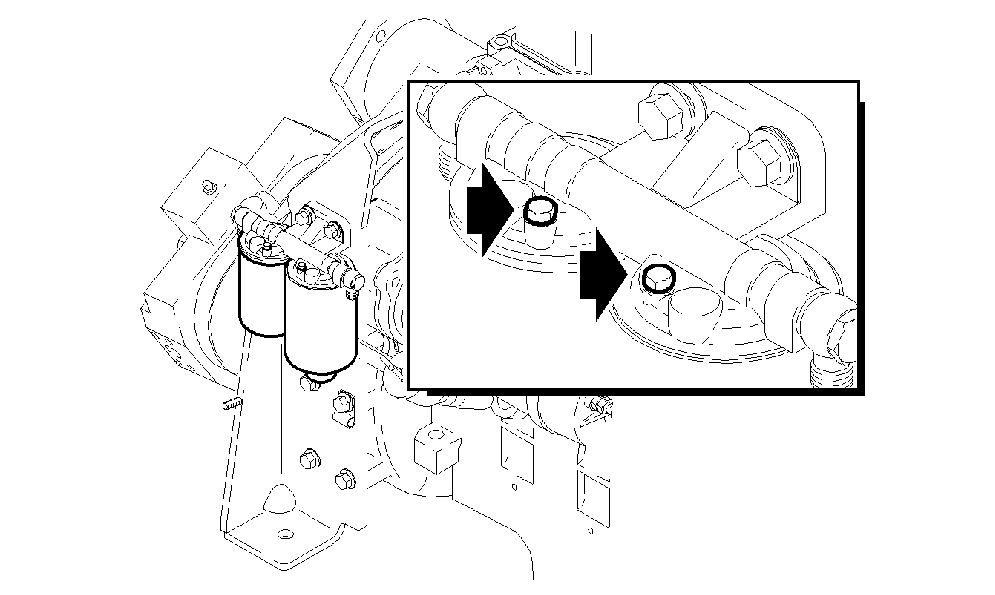

6. Bleed the fuel lines after changing the filters, using the following procedure:

a. Loosen the bleed screws.

b. Using the starting system, crank the engine over until fuel free of air runs out around the bleed screws.

c. Tighten the bleed screws.

T147112

MR64971,00000AA -19-05DEC01-2/2
