Connecting Tail/Warning Light Plug to Tractor

NOTE: Field installation of Seven-Terminal Auxiliary Electric Kit (RE17282) is required if towing tractor is not equipped with an electrical outlet.

Make sure machine tail and warning lights operate with tractor tail and warning lights and turn signals.

Connect machine lighting plug (A) to seven-terminal outlet on tractor. Check tail/warning light.

Terminal Circuit Function Wire Color
1 26 Ground Black
2   Open
3 22 Left-Hand Turn/Warning Light Yellow
4   Open
5 23 Right-Hand Turn/Warning Light Green
6 24 Tail Lights Brown
7   Open


RW55134

Tractor Seven-Terminal Outlet

E47996

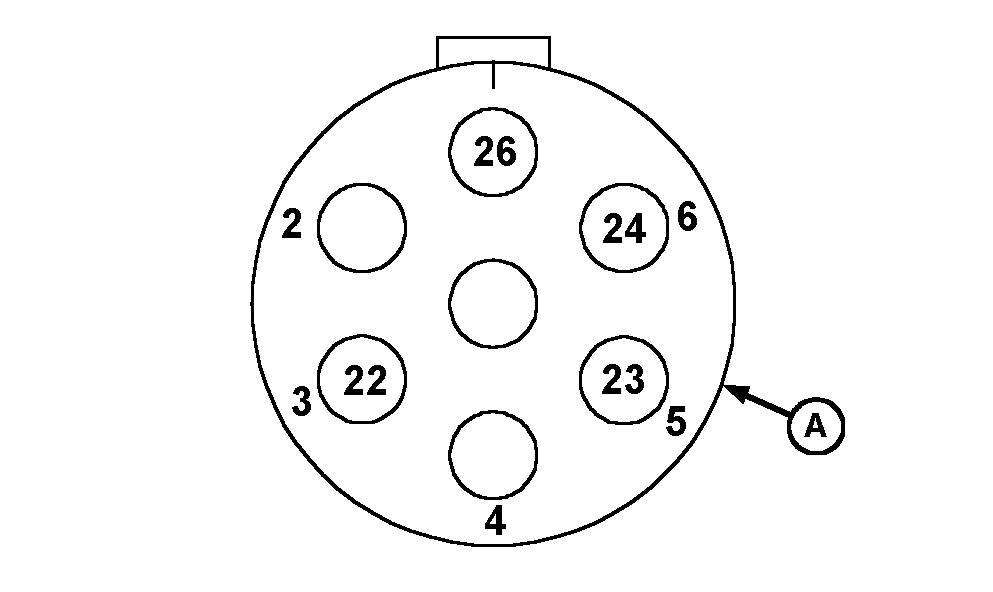

Machine Lighting Plug


A-Machine Lighting Plug
