Removing Disks

1. Raise machine and engage lift cylinder lock.

2. Raise front doors.

causym CAUTION: Knives have two cutting edges. Be careful when working around the knives. Knives are sharp and can cause serious injury. Wear gloves when handling knives and disks.

3. To avoid serious injury, rotate both knives on all disks, so they are positioned UNDER the disks.

4. Put a piece of wood between two disks.

NOTE: If removing left-hand end disk, refer to "Replacing Left-Hand End Converging Disk Driver" in this section. If removing right-hand end disk, refer to "Replacing Right-Hand End Converging Disk Driver" in this section.

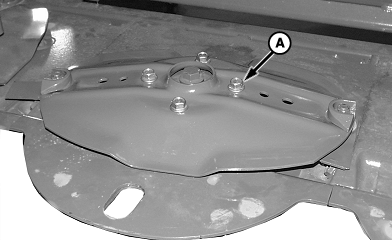

5. Remove four cap screws (A).

6. Remove disk from cutterbar.
