Replacing Wear Shield on Knife Bolt

1. Rotate disk so knife bolt is over hole (A). Remove knife. (See "Removing Knives" in this section.)

2. Remove wear shield (B) using a brass drift or wood block and hammer.

3. Check disk, knife, special bolt and special lock nut before installing new wear shield. Replace as necessary. (See "Checking Knives", "Checking Knife Bolt Wear" and "Checking Knife Lock Nut Wear" in this section.)

NOTE: Wear shield life can be extended by moving shield to a location of opposite rotation.

4. Install new wear shield.

5. Install knife and hardware. (See "Installing Knives" in this section.)

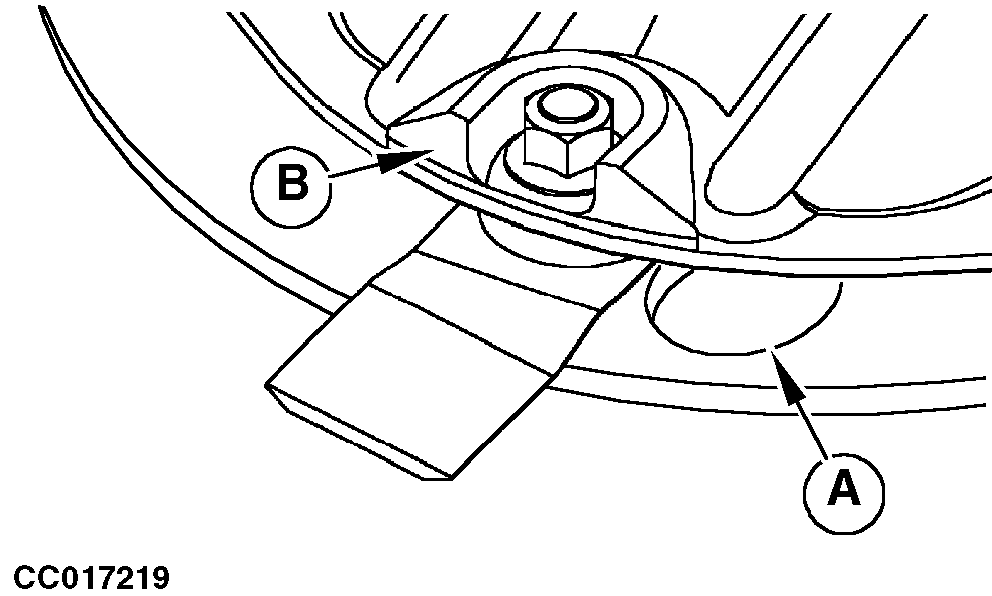

CC017219


A-Hole
B-Wear Shield

OUCC006,00007C4 -19-24OCT02-1/1
