Checking Wheel Hardware Torque

IMPORTANT: Wheels should be installed with valve stems to the inside. Incorrect assembly can cause wheel hardware to loosen.

Check wheel hardware torque after the first 10 hours of use.

Whenever a wheel has been removed and installed, check torque after one hour of operation. Wheel hardware should be tightened to specification:

Specification

Wheel Nuts -Torque 115 N·m (85 lb-ft)

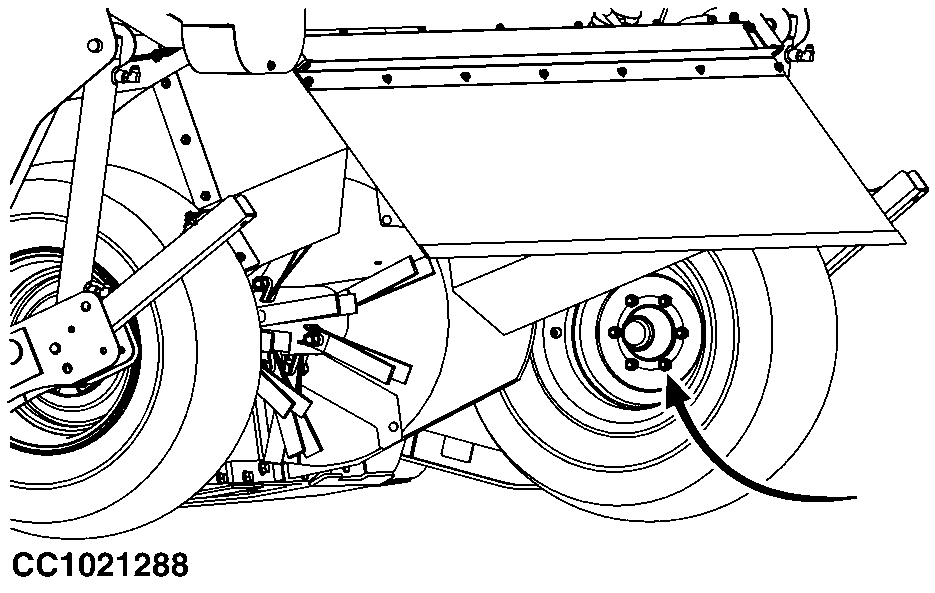

CC1021288

OUCC006,0000A32 -19-19NOV03-1/1
