Positioning Tractor Drawbar (Equal Angle Hitch)

causym CAUTION: To avoid personal injury, use locking pins to hold drawbar stationary when operating PTO-driven implements.

1. Remove locking pins (A) and slide drawbar to center position (shown).

2. Install locking pins.


A-Locking Pins

RW21881

John Deere 7000 Series Tractor Shown

OUCC006,0000A65 -19-11DEC03-1/2

IMPORTANT: Failure to conform to the following setup dimensions can result in serious powerline damage.

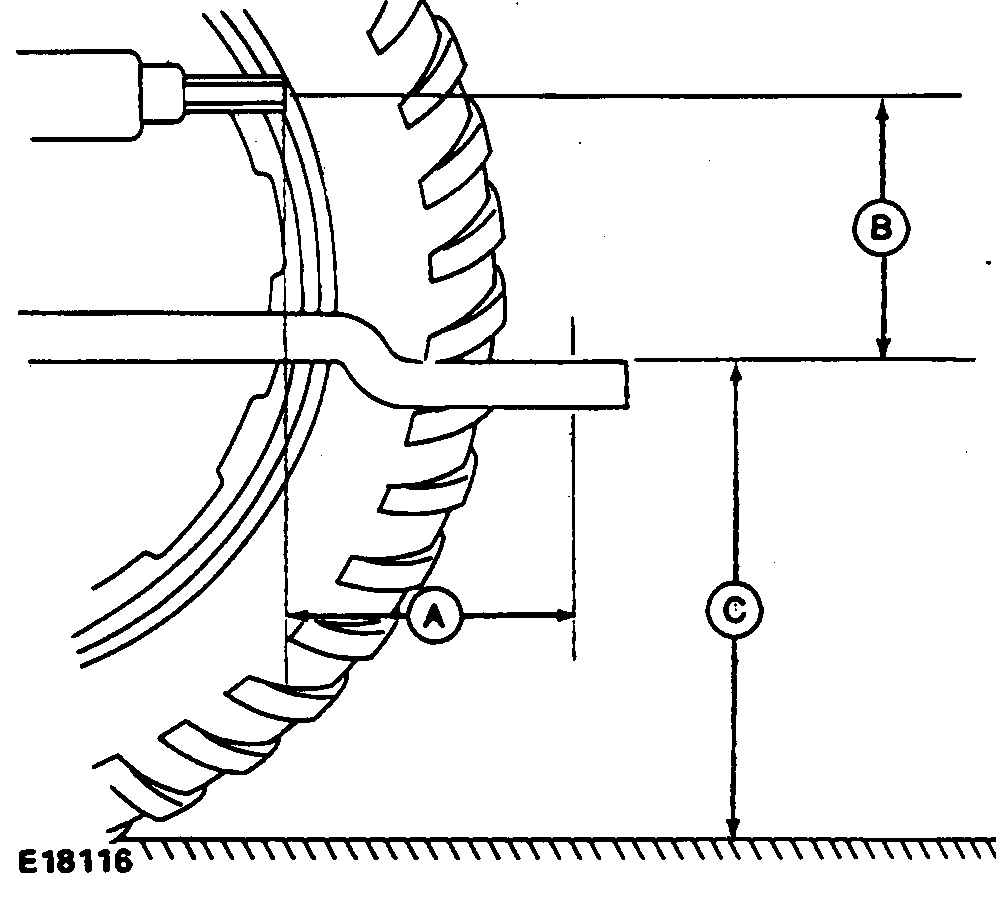

3. If drawbar is offset, turn drawbar so offset is down, as shown.

4. Set drawbar to the following dimensions:

Drawbar Pin Hole Centerline-to-PTO Shaft (A) 540 rpm PTO 356 mm (14 in.)
Drawbar Pin Hole Centerline-to-PTO Shaft (A) 1000 rpm PTO 406 mm (16 in.)
Top of Drawbar-to-PTO Centerline (B) 152-305 mm (6-12 in.)
Ground-to-Top of Drawbar (C) 330-508 mm (13-20 in.)


E18116


A-Drawbar Pin Hole Centerline-to-PTO Shaft
B-Top of Drawbar-to-PTO Centerline
C-Ground-to-Top of Drawbar

OUCC006,0000A65 -19-11DEC03-2/2
