Every 10 Hours - Roll Pivots (Roll Conditioner)

1. Raise machine using tractor hydraulics, apply handbrake, place transmission in park, shut off tractor engine and remove key.

2. Engage cylinder lift stops on both sides.

3. Slide windrow forming shields away from each other.

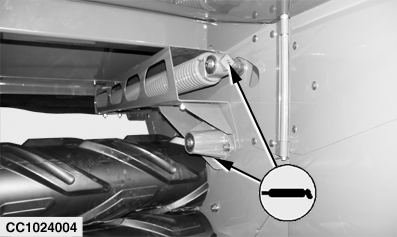

4. Lubricate roll pivot on both sides with John Deere GREASE-GARD.

CC1024004

OUCC006,0000A77 -19-15DEC03-1/1
