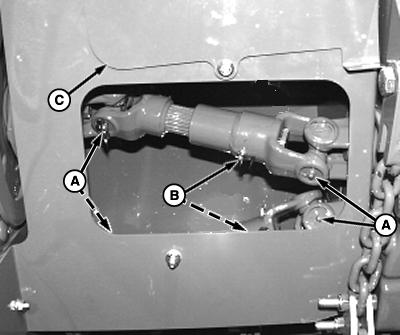

Loosen nut and raise access door (C).
Rotate rolls to align grease fittings. (Fittings should all align to permit access.)
Lubricate with John Deere GREASE-GARD.
A-Upper and Lower Yokes B-Upper and Lower Grooved Arms C-Access Door
OUO6039,00013DC -19-30NOV04-1/1
