Adjusting Gauge Shoes

1. Raise platform using tractor hydraulics.

2. Shut off tractor engine and remove key.

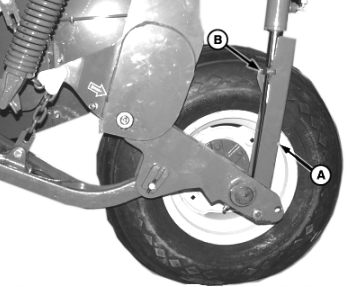

3. Engage cylinder lock (A) and retain with strap (B). Repeat on other side.

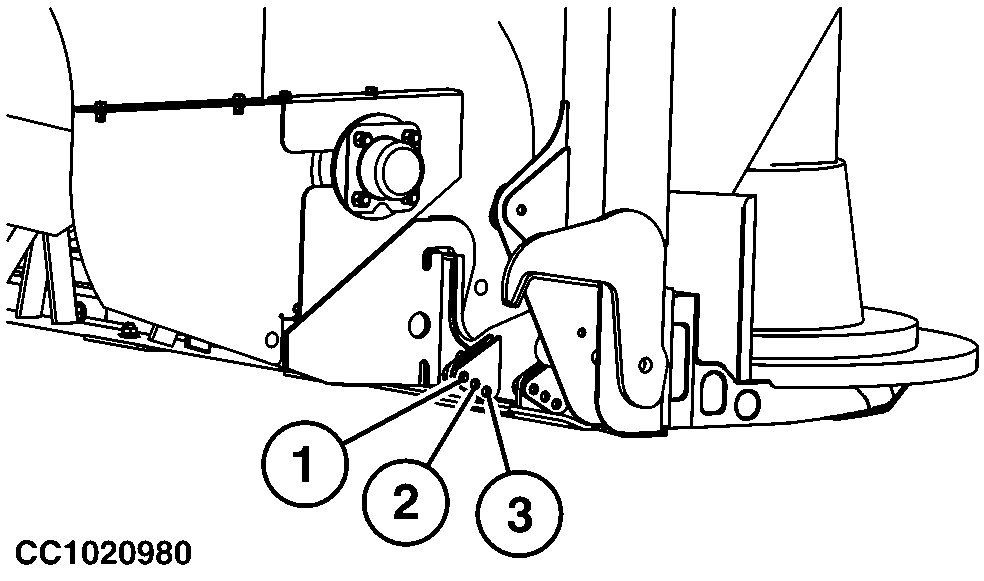

4. Remove the two pins from one side gauge shoe. Position gauge shoe in position 1, 2 or 3.

5. Reinstall pins on gauge shoe.

6. Adjust other gauge shoe in the same position.

7. Start tractor engine. Raise platform using tractor hydraulics.

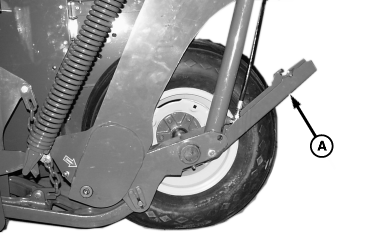

8. Move cylinder lock (A), at each cylinder, to unlocked position.

9. Lower platform using tractor hydraulics.

10. Shut off tractor.


A-Cylinder Lock
B-Strap
1-Position 1
2-Position 2
3-Position 3

E53572
CC1020980
E53573

OUO6085,00001D5 -19-20SEP04-1/1
