Adjusting Conditioning Intensity

causym CAUTION: Disengage PTO, shut off tractor engine and remove key before making adjustment.

IMPORTANT: Determine the correct clearance between conditioning hood and tine tips to provide the best conditioning effect for crop, and prevent crop plugging at front of conditioning hood.

NOTE: Clearance between tine tips and conditioning hood has a slight effect on windrow width.

Turn crank (A) to adjust conditioning hood.

  • Turn crank clockwise to increase conditioning effect.
  • Turn crank counterclockwise to decrease conditioning effect.

Conditioning effect can also be changed by modifying rotor speed (see "Changing Impeller Rotor Speed" in this Section).

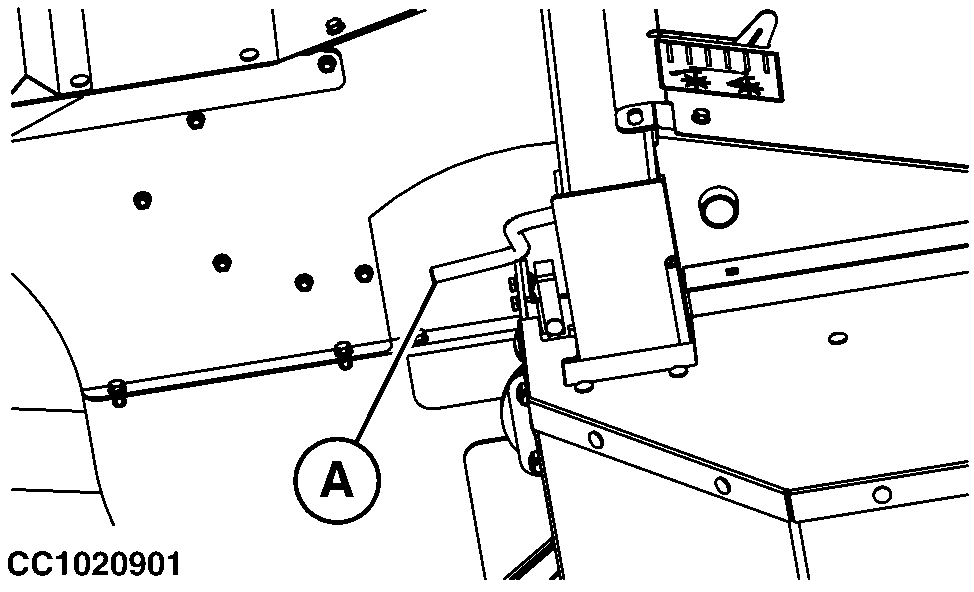

A-Crank
B-Indicator

CC1020901
CC1023100

OUO6085,000024B -19-22JUL04-1/1
