PTO Storage

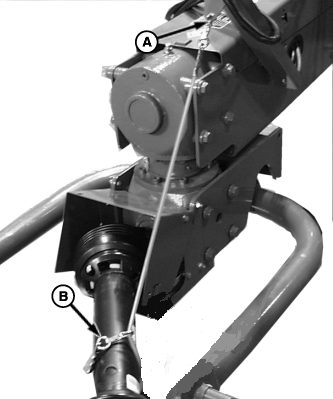

1. Storage of PTO driveline on swivel tongue. Fasten one end of support cable to eye in cable bracket (A) and other end around driveline (B).

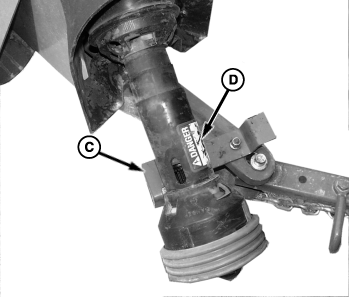

2. Storage of PTO driveline on clevis extension of an equal angle tongue. Slide pin retainer (C) out to approximately 100° angle. Rest PTO driveline (D) on retainer.

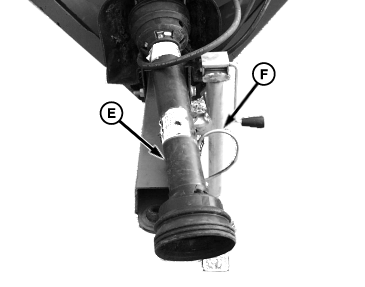

3. Storage of PTO driveline on Ball extension of an equal angle tongue. Place driveline (E) on hydraulic hose support (F).

E53756

Swivel Tongue PTO Storage

E53761
E53762

OUO6085,000024F -19-19OCT04-1/1
