Selecting Tractor PTO Speed

CAUTION: Under no circumstances should a mower-conditioner equipped for 540 rpm PTO drive be operated with a tractor at 750 or 1000 rpm PTO speed.

Under no circumstances should a mower-conditioner equipped for 1000 rpm PTO drive be operated with a tractor at 540 or 750 rpm PTO speed.

IMPORTANT: Always run tractor at rated PTO speed. Overspeed will damage mower-conditioner.

The tractor PTO shaft size must be 1-3/8 in.

Follow the tractor Operator's Manual to install the appropriate PTO shaft.

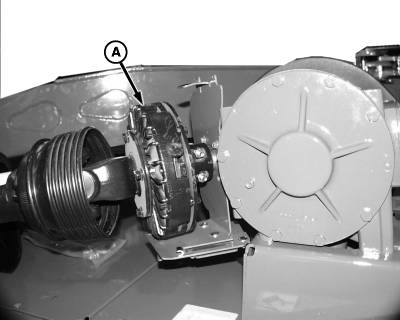

Refer to tag on mower-conditioner gear case to select tractor PTO speed.

Follow the tractor Operator's Manual to properly set the PTO speed at 540 or 1000 rpm.

OUO6085,0000251 -19-13OCT04-1/1
