Towing the Machine on Public Roads

Always observe local road traffic regulations when using public roads.

Be sure reflectors and warning lights are clean and visible.

Move the mower-conditioner tongue to transport position.

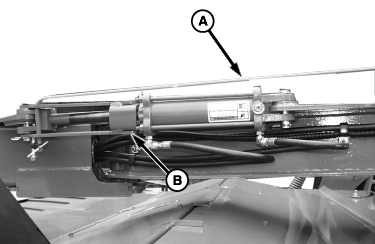

Engage tongue swing lock (B) by pulling back on handle (A).

A-Handle
B-Lock

OUO6085,0000254 -19-14OCT04-1/1
