Understanding Direction of Knife Rotation

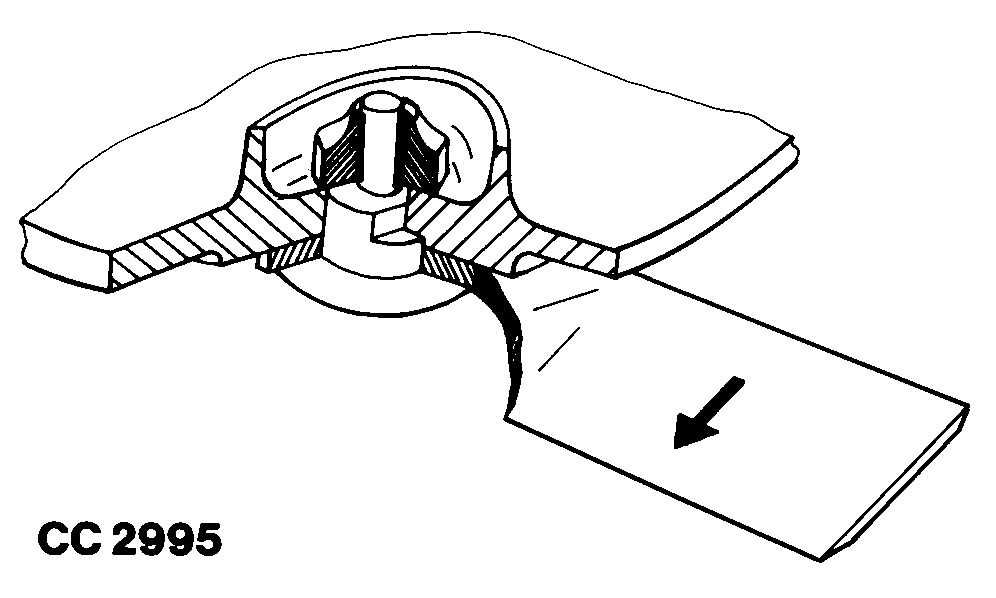

The knives are twisted. An arrow is engraved on each knife to indicate the direction of rotation. When worn, the knives can be turned over and reinstalled on the same disk and at the same location to offer a new cutting edge.

When the second cutting edge is also blunt, replace knife. Install new knife with chamfered edge facing the ground.

OUO6085,0000258 -19-22JUL04-1/1
