Adjusting Roll Spacing

Minimum roll spacing fits for most crops. Spacing can be increased for improved feeding of heavy, thick-stemmed cane-type crops such as sudex.

IMPORTANT: DO NOT move top castle nut. Nut is factory installed to maintain minimum clearance between rolls. If top nut is adjusted or removed, serious damage to machine will occur.

Operator needs to keep the conditioning rolls clean and free from buildup to prevent the rolls from hitting and causing excessive wear and damage to the machine.

1. Park machine on a level surface.

2. Lower platform and carrier frame completely.

3. Turn adjusting nut (A) clockwise until a desired gap between rolls (B) is reached within specifications.

Specification

Roll Spacing -Distance 6 - 12 mm (0.236 - 0.471 in.)

4. Repeat procedure on opposite side.

5. To return to recommended roll spacing for most crops, turn adjusting nut counterclockwise until it stops.

CC1024007
E53847

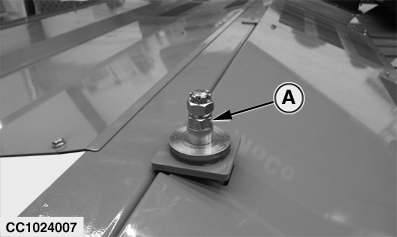

A-Adjusting Nut

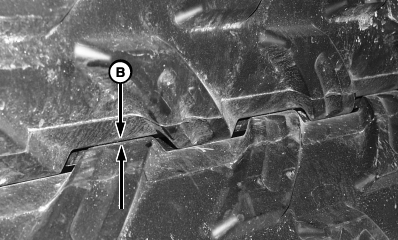

B-Dimension, 6-12 mm (0.236-0.471 in.)

OUO6085,0000270 -19-30NOV04-1/1
