Replacing Roll Conditioner Drive Belt
1.

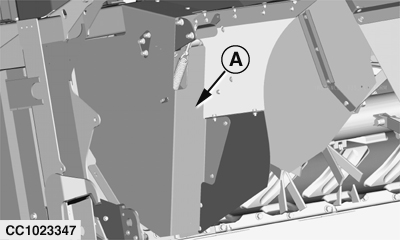

Remove shield (A).
A-Shield
|
|
|
|
OUO6085,0000284 -19-30NOV04-1/7
|
|
2.

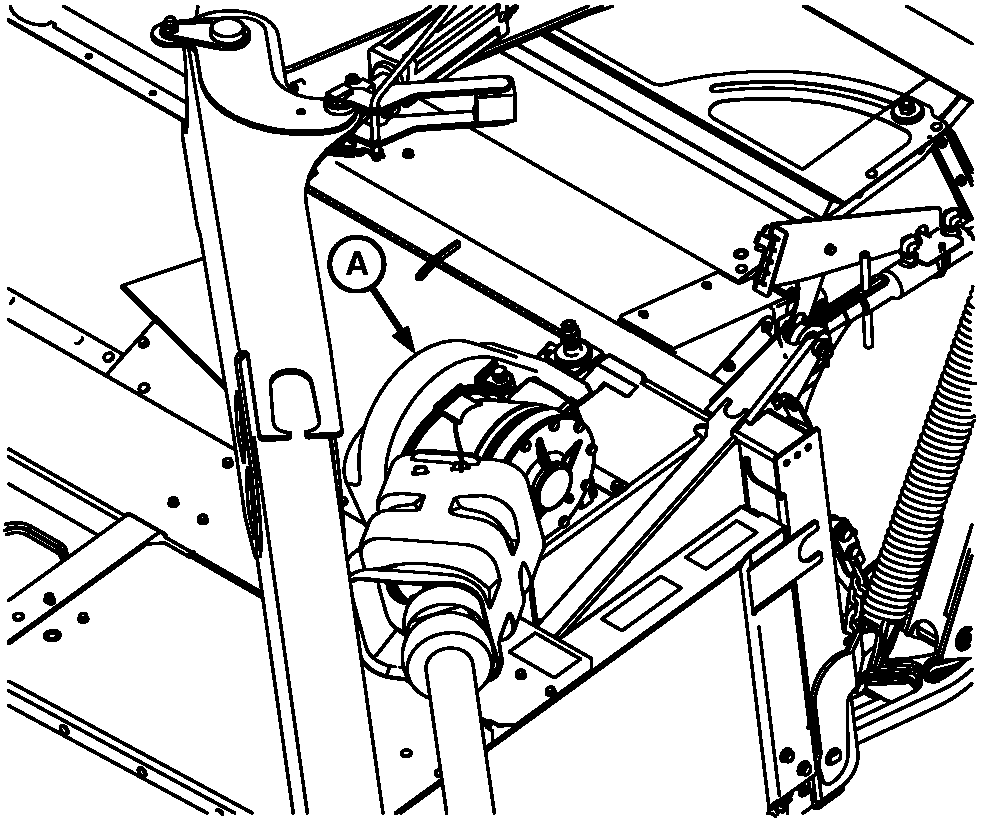

Remove left-hand side shield (A).
A-Shield
|
|
|
|
OUO6085,0000284 -19-30NOV04-2/7
|
|
3.

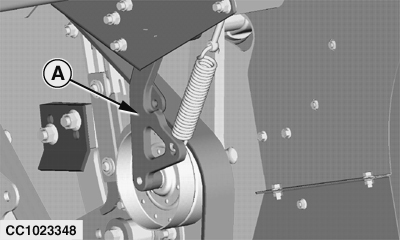

Release spring tension on idler (A)
A-Idler
|
|
|
|
OUO6085,0000284 -19-30NOV04-3/7
|
|
4.

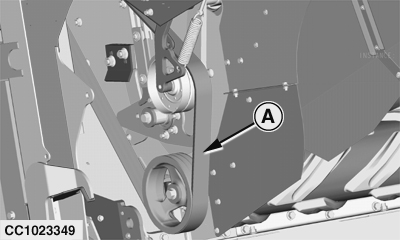

Remove drive belt (A) from sheaves.
5.
Pull out belt (A).
6.
Install new belt (A).
A-Drive Belt
|
|
|
|
OUO6085,0000284 -19-30NOV04-4/7
|
|
7.
Adjust roll conditioner drive belt tension. See "Adjusting Roll Conditioner Drive Belt Tension" in this Section.
A-Spring-Loaded Idler
|
|
|
|
OUO6085,0000284 -19-30NOV04-5/7
|
|
8.
Install left-hand side shield (A).
A-Shield
|
|
|
|
OUO6085,0000284 -19-30NOV04-6/7
|
|
9.
Install shield (A).
A-Shield
|
|
|
|
OUO6085,0000284 -19-30NOV04-7/7
|
|
