Replacing Rotor Tines

IMPORTANT: Do not operate machine if tines are missing. Rotor will be out of balance causing vibration and machine damage.

1. Remove bolts (A).

2. Check screw and lock nut for damage. Replace if necessary.

NOTE: Bolt and lock nut should be replaced after maximum 5 removals.

3. Install new tine (B). Fasten bolts (A).

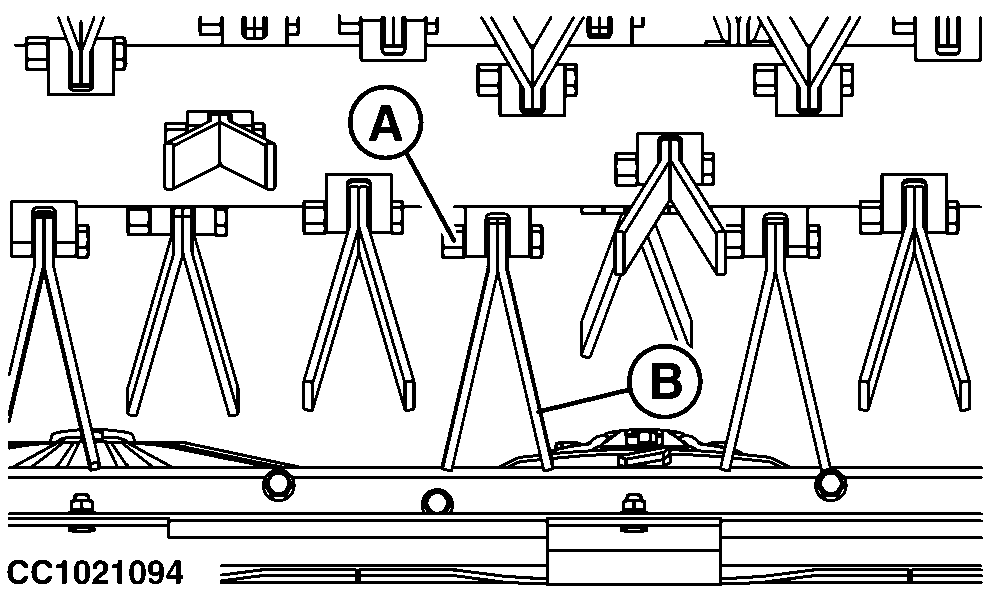

CC1021094


A-Bolt
B-Tine
