Adjusting Equal Angle Hitch

IMPORTANT: Driveline must be level when operating mower-conditioner. Put equal angle hitch in correct position to prevent driveline damage.

1. Park the mower-conditioner in operate position on level ground.

2. Lower platform.

3. Engage tractor parking brake and place transmission in "Park".

4. Shut off tractor engine and remove key.

5. Measure distance between centerline of tractor PTO shaft and the ground.

6. The measured distance must be equal to the distance between center of the input shaft on the tongue and the ground.

If not, adjust equal angle hitch as follows:

a. Loosen bolts (A).

b. Turn adjustment nut (B) until driveline is level.

c. Lubricate nut with light oil before installation.

d. Torque both mounting cap screws to specification.

Specification

Cap Screw -Torque 540 N·m (400 lb-ft)

e. Make sure driveline is level. If not, readjust equal angle hitch.

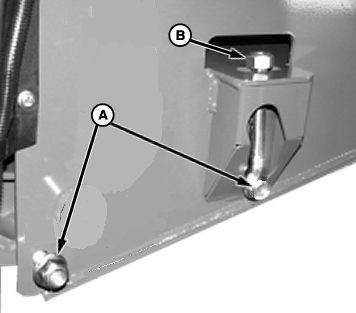

E53657


A-Bolts
B-Nut

OUO6085,0000297 -19-22NOV04-1/1
