Preparing Mower-Conditioner for Transport

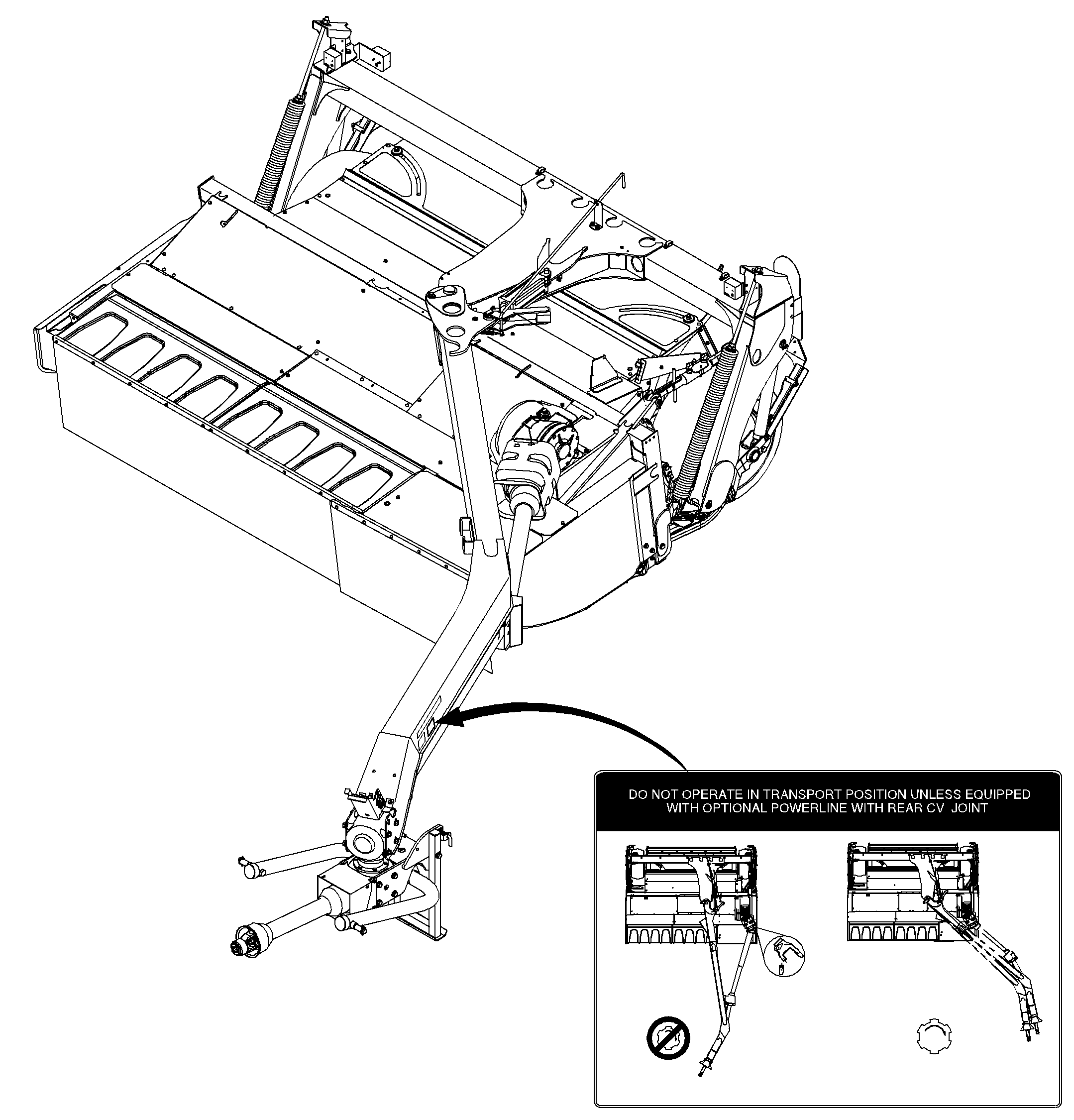

E53703

OUO6085,000029B -19-01DEC04-1/3

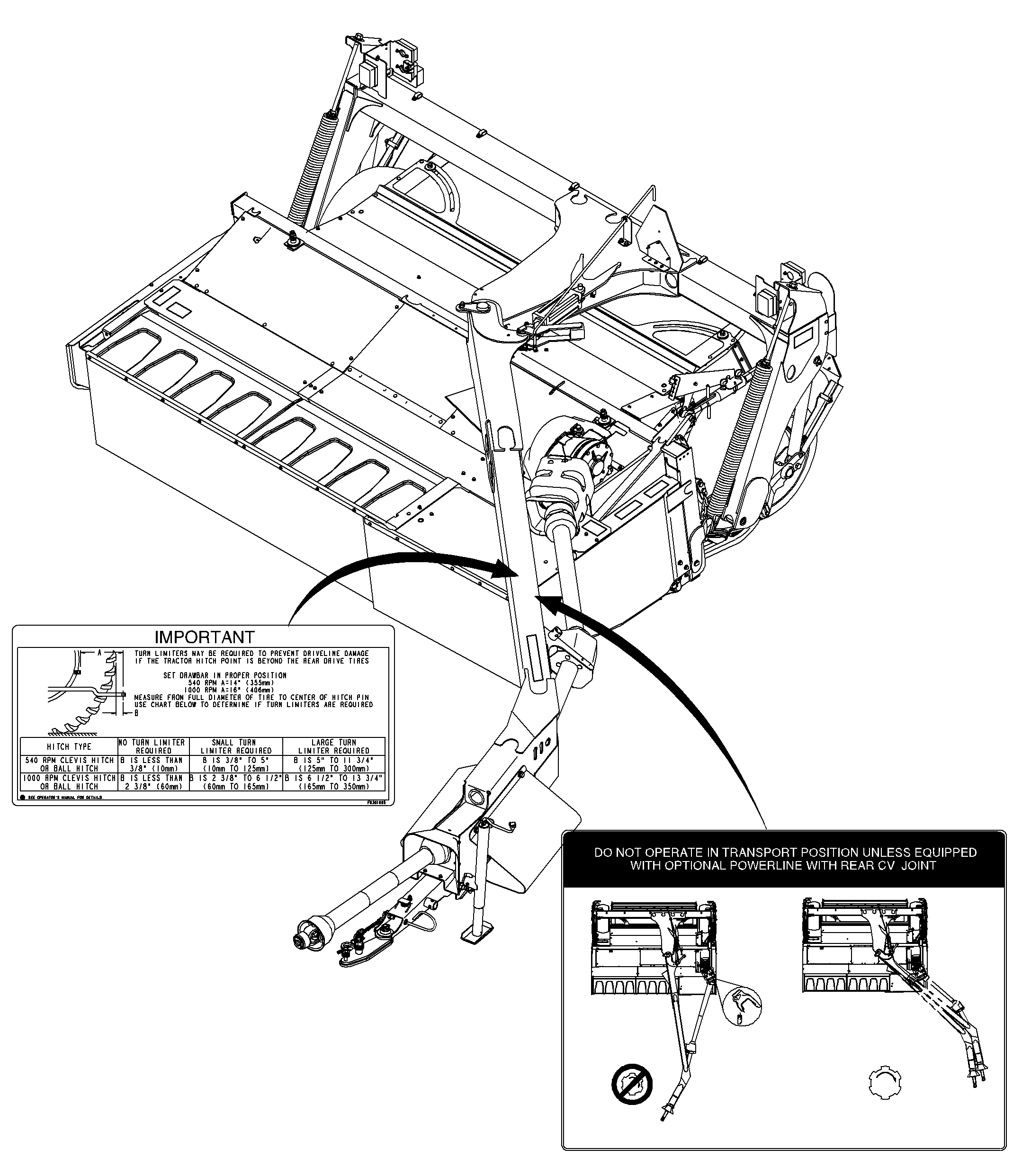

E53704

OUO6085,000029B -19-01DEC04-2/3

NOTE: Transporting wide equipment may require additional precautions. Check local public road regulations.

1. Be sure road lighting, marking and reflectors are clean and visible.

IMPORTANT: Do not operate a 2.5 or 3 M machine without limiter block (C) in place. Damage to machine could result.

NOTE: 525 and 530 MoCos use a limiter block on cylinder arm to limit travel.

  • Size of 525 Limiter Block: 99.0 mm (4.0 in.)

  • Size of 530 Limiter Block: 81.5 mm (3.0 in.)

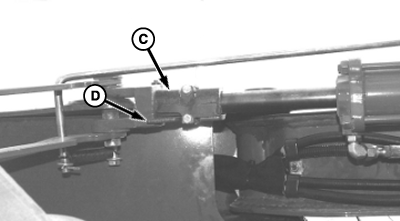

2. Ensure limiter block (C) is attached to cylinder rod. A tab (D) on bottom of one side and a tab on top of opposite side keeps limiter from turning and allows transport lock to engage.

3. Activate tongue swing circuit to move mower-conditioner to desired position for transport.

causym CAUTION: Transport lock lever must be engaged during transport to prevent mower-conditioner from swaying side-to-side on roads.

4. Pull transport lock lever (A) back to close swing cylinder lock (B), locking mower-conditioner in position.

E53659
E53768


A-Transport Lock Lever
B-Transport Lock
C-Limiter Block
D-Tab

OUO6085,000029B -19-01DEC04-3/3
