Preparing Mower-Conditioner for Field OperationIMPORTANT: Do not engage tractor PTO with mower-conditioner in transport position unless machine is equipped with a CV driveline. Damage to drive components will occur. 1. Push transport lock lever (A) toward carrier frame to disengage lock (B).
|
|
OUO6085,000029E -19-23NOV04-1/2 |
|

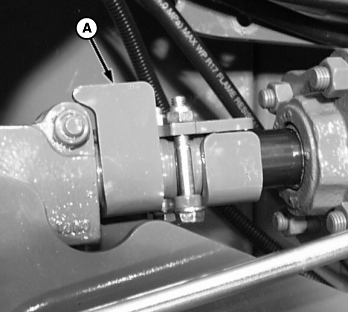

NOTE: 525 and 530 MoCos use a limiter block (A) on cylinder arm to limit cylinder travel. Mower-conditioner without CV can be operated in a range of tractor centered on windrow, to tractor running against standing crop. NOTE: If equipped with CV platform driveline, mower-conditoner may be operated intermittently in any tongue position. Prolonged operation in transport position is not recommended as it can lead to CV heat build-up and reduced life. 2. Activate tongue swing circuit to move mower-conditioner to desired field operating position. 3. Lower platform to the ground. |
|
OUO6085,000029E -19-23NOV04-2/2 |
