Adjusting Cutting Height

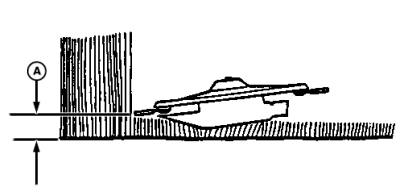

The cutting height (A) is determined by the angle of cutterbar and position of side gauge shoes. Select cutting height from chart below, adjust gauge shoes and turnbuckle length (B) as necessary.
NOTE:
The information in chart is given for machines on level hard ground.
| |
Cutting height without gauge shoe spacers |
| Gauge shoe position |
Minimum
With turnbuckle length at 592 mm (23.3 in.) |
Maximum
With turnbuckle length at 520 mm (20.5 in.) |
| 1 |
28 mm (1.1 in.) |
58 mm (2.3 in.) |
| 2 |
28 mm (1.1 in.) |
74 mm (2.9 in.) |
| 3 |
38 mm (1.50 in.) |
98 mm (3.8 in.) |
| |
Cutting height with gauge shoe spacers |
| Gauge shoe position |
Minimum
With turnbuckle length at 592 mm (23.3 in.) |
Maximum
With turnbuckle length at 520 mm (20.5 in.) |
| 2 |
71 mm (2.8 in.) |
135 mm (5.3 in.) |
| 3 |
103 mm (4.1 in.) |
167 mm (6.6 in.) |
-
To increase cutting height in each range, shorten tilt control turnbuckle.
-
To decrease cutting height in each range, lengthen tilt control turnbuckle.
IMPORTANT:
Operating at flatter angles will reduce cutterbar maintenance.
|
A-Cutting Height

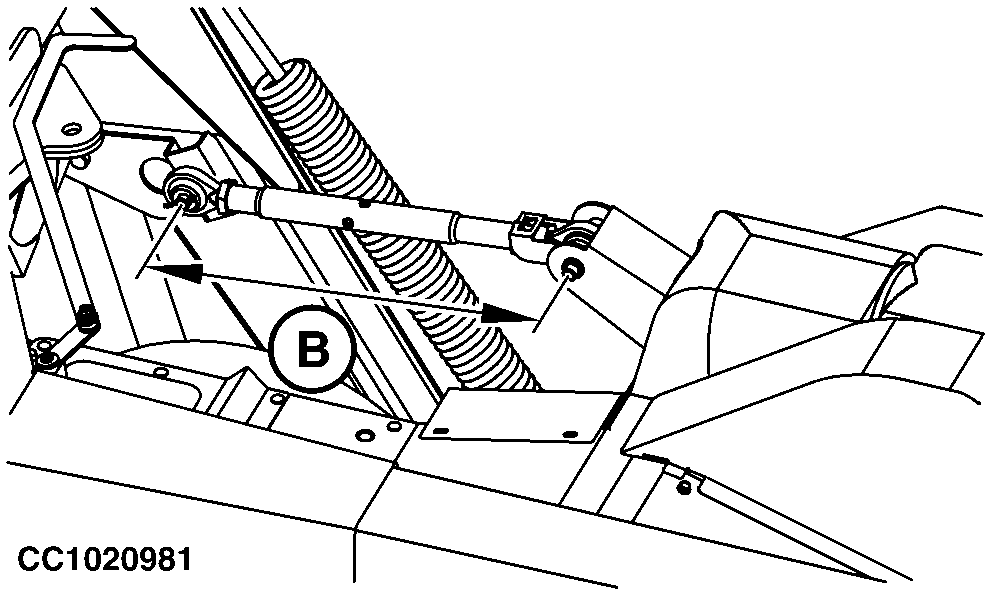

B-Turnbuckle length
1-Position 1
2-Position 2
3-Position 3
|
