Turning in Field
The hitch allows right-angle and point-row turns without steering the mower-conditioner.
1.

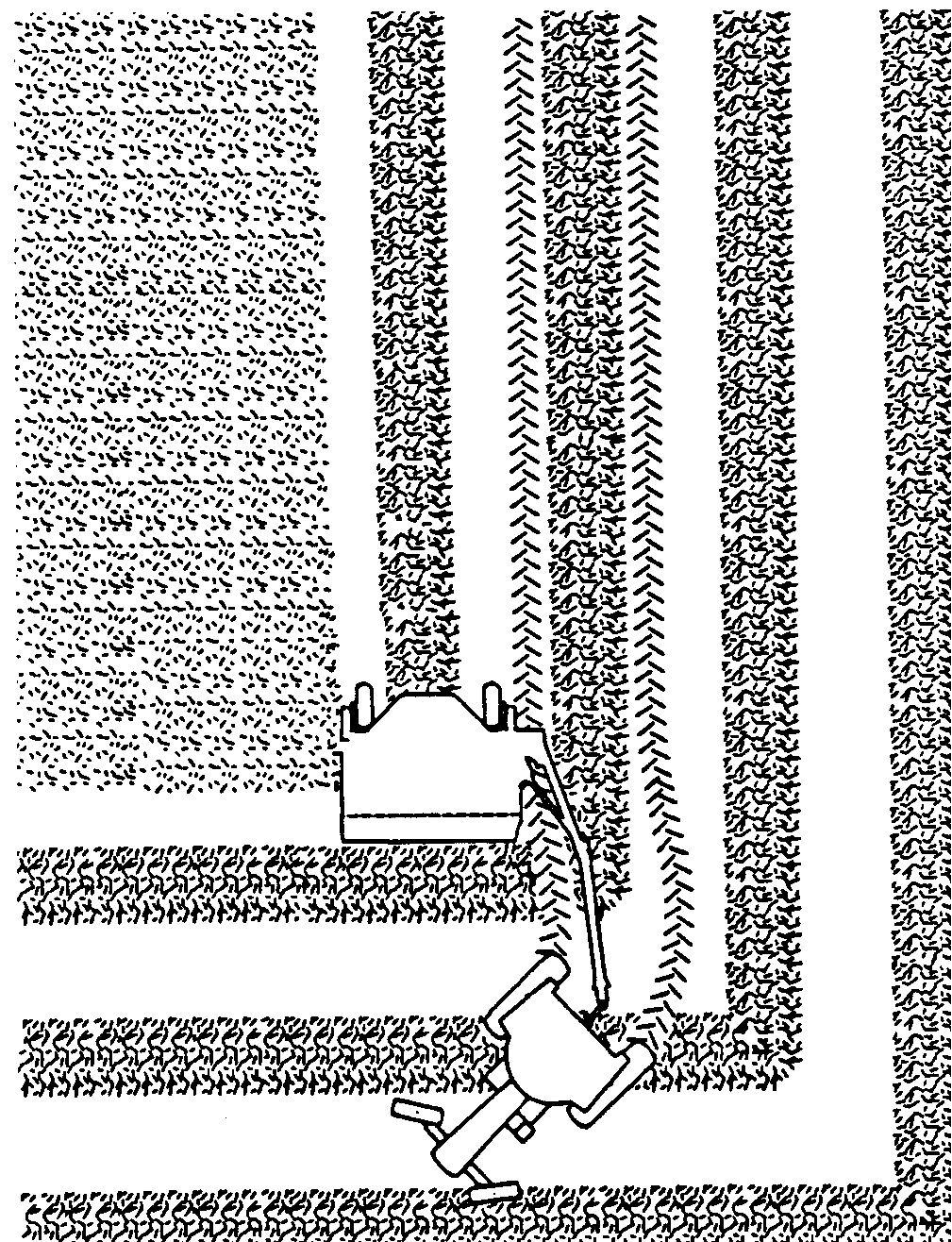

Slow down when approaching a sharp turn
|
|
|
|
OUO6085,00002A1 -19-30NOV04-1/4
|
|
2.

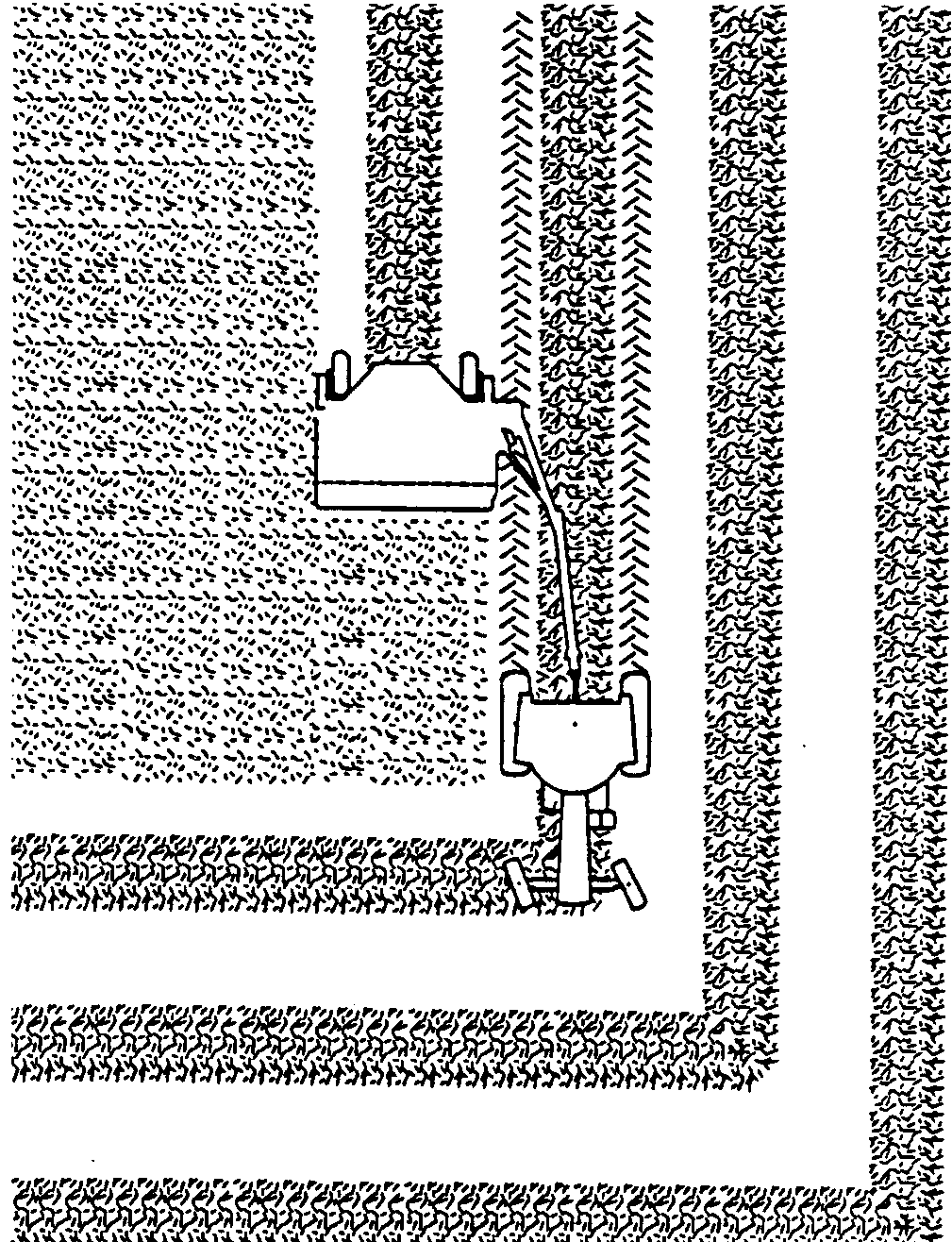

A short left-hand turn followed by a sharp right-hand turn will produce best results.
|
|
|
|
OUO6085,00002A1 -19-30NOV04-2/4
|
|
3.

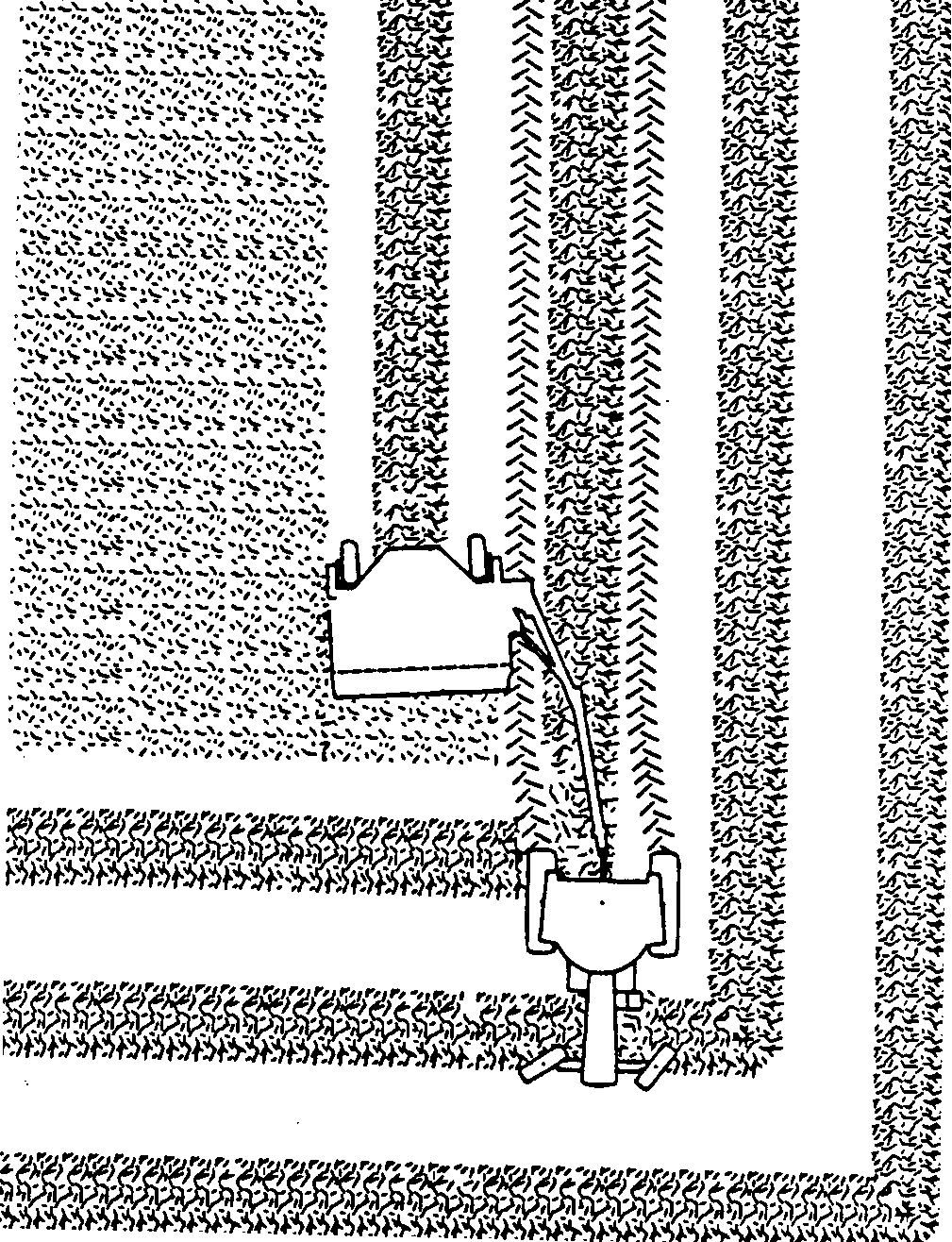

Quickly turn tractor until front tires near uncut crop.
|
|
|
|
OUO6085,00002A1 -19-30NOV04-3/4
|
|
4.

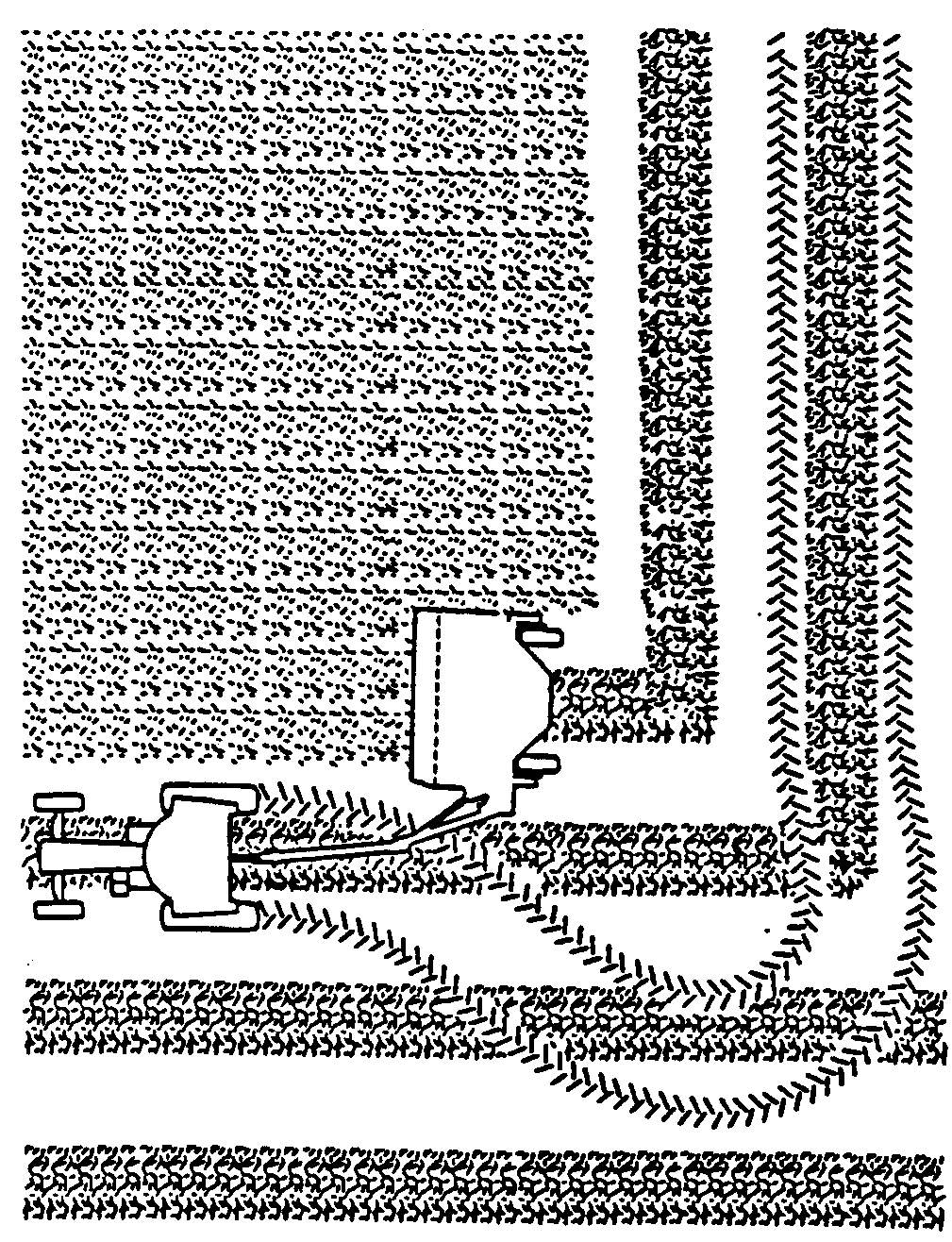

Quickly turn tractor away from uncut crop until it is the correct distance from cut line to resume cutting.
|
|
|
|
OUO6085,00002A1 -19-30NOV04-4/4
|
|
