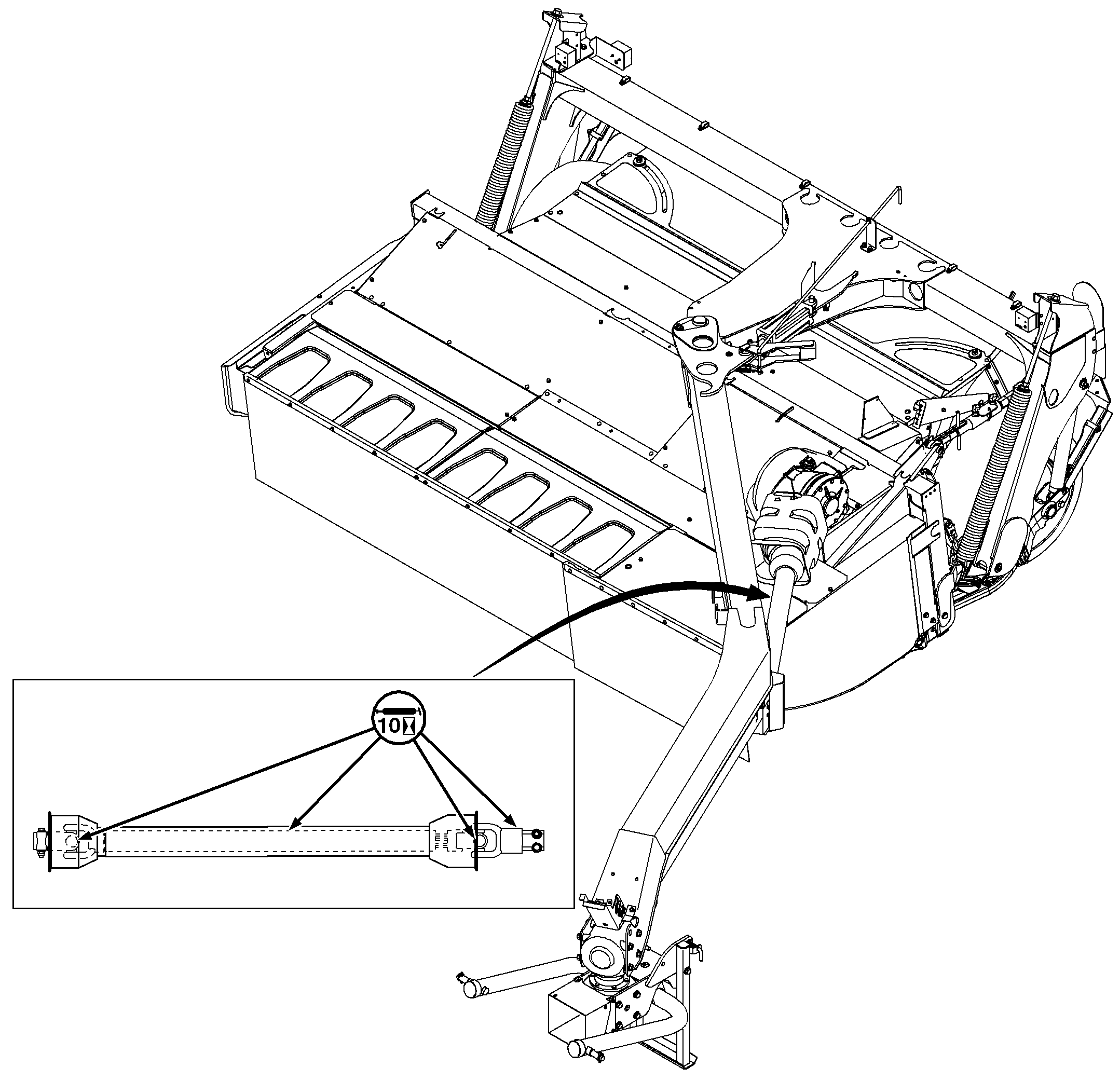

Lubricate platform driveline crosses, slip sleeve, and overrunning yoke. See chart for recommended grease.

OUO6085,00002A6 -19-01DEC04-1/2

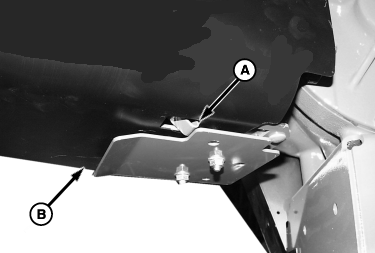

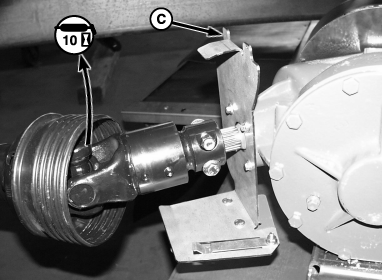

NOTE: To remove shield (B), push up latch (A) on bottom, pull bottom of shield (B) forward and lift shield off tabs (C) on top. Slide shield forward to access grease fittings.

Reinstall shield by pushing shield forward, lifting over tabs (C) on top and pushing bottom of shield between plates so latch (A) will catch in hole on shield.

A-Latch
B-Shield
C-Tabs

OUO6085,00002A6 -19-01DEC04-2/2
