Every 100 Hours - Platform Drive Gear Case Oil Level

1. Level gear case.

2. Remove plug (A) to check oil level. Oil should be level with bottom of port. Fill as necessary, with specified oil (see "Platform Gear Case Oil" in this Section).

3. Apply pipe sealant with TEFLON ® , or equivalent, on threads of plug. Install plug.

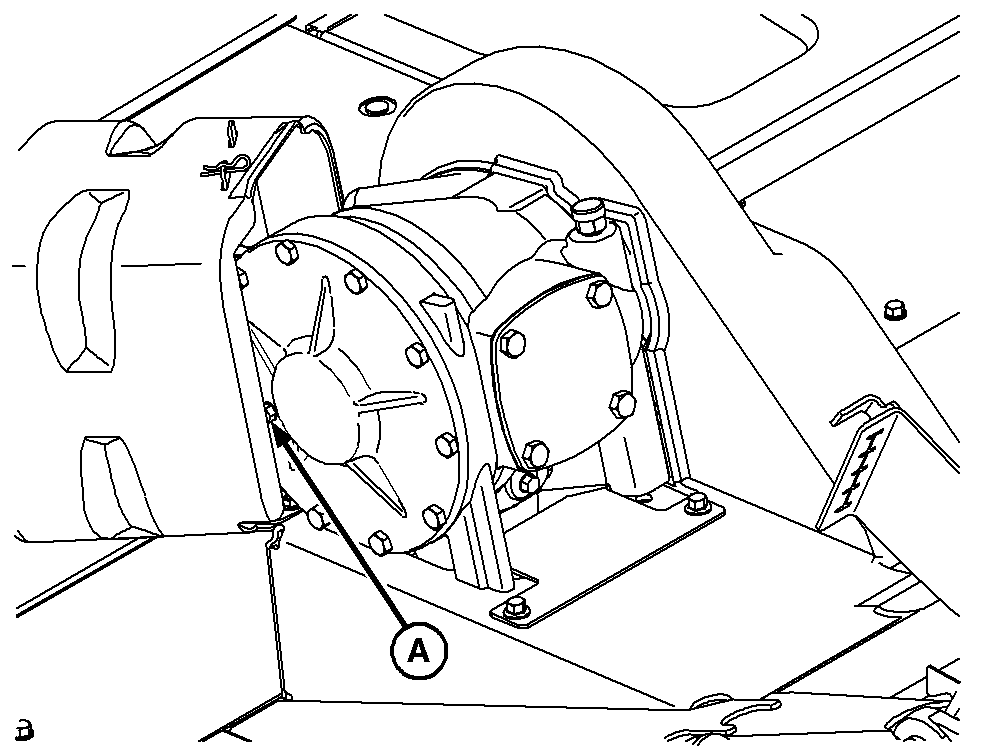

A-Level Plug

E53879

TEFLON is a registered trademark of DuPont Company.

OUO6085,00002AB -19-13APR05-1/1
