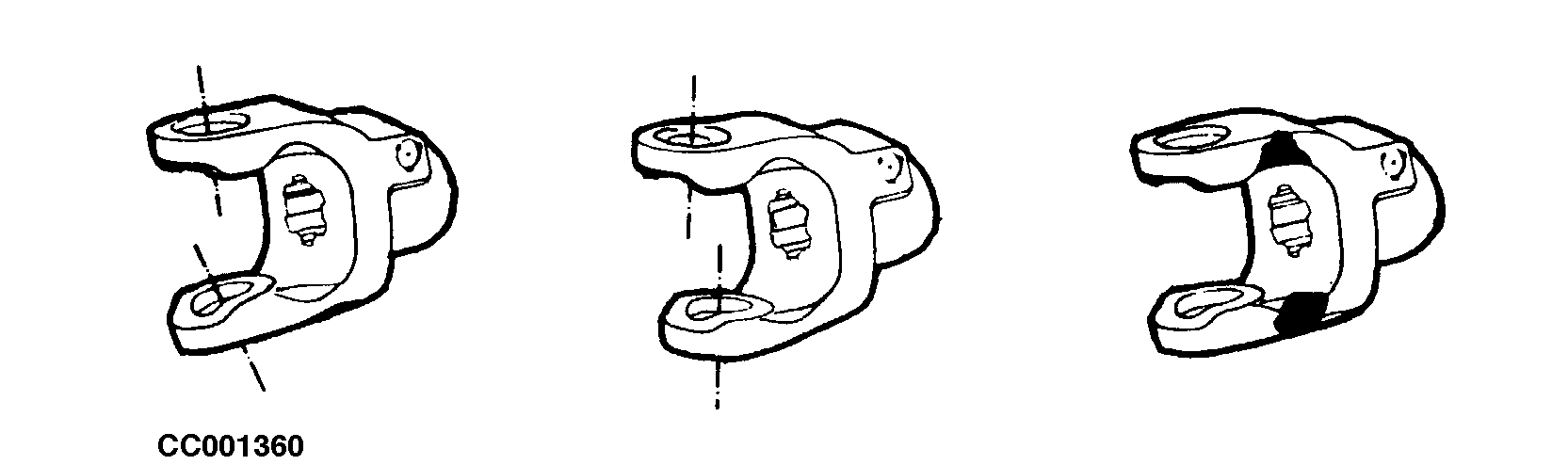

Yoke ears spread

Axial forces too high

Clean and grease telescoping members

Yoke ears distorted

Overload caused by high starting and peak torques

Replace parts

Check slip clutch for correct operation (540 rpm only) (See "Slipping PTO Driveline Slip Clutch" in Service Section.)

Pressure marks on yoke ears

Excessive bending of rotating drive shaft due to bad adjustment of hitch

Adjust hitch. (See "Preparing the Mower-Conditioner" and "Attaching and Detaching" Section)

Bearing caps blued

Insufficient lubrication

Replace cross kit

OUO6085,00002B0 -19-24NOV04-1/1
