Slip Clutch Alert (If equipped)

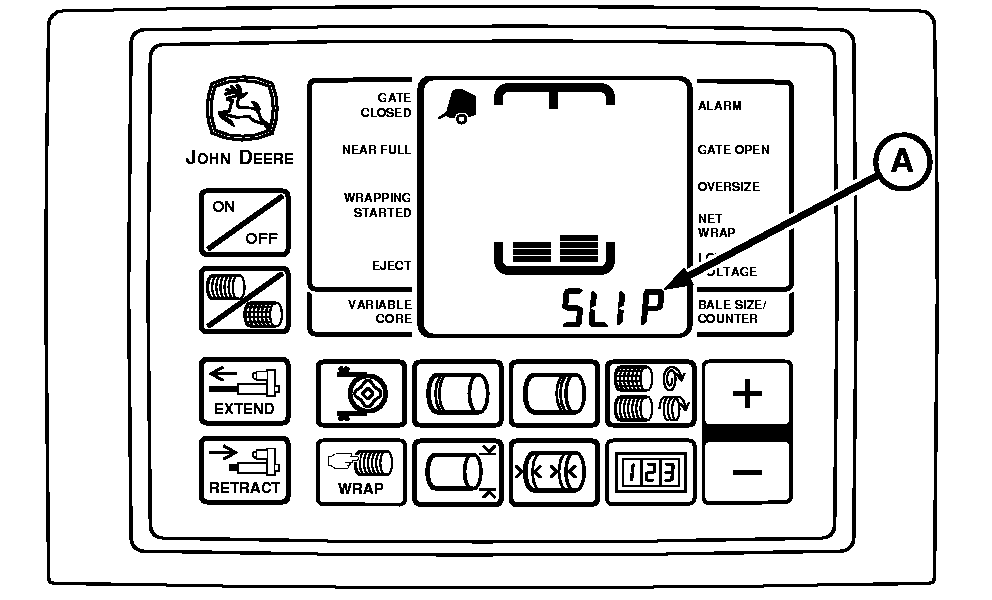

This system alerts operator by an audible alarm and the word "SLIP" (A) in the digital display when either the main drive clutch on the PTO assembly or the pickup drive slip clutches slip.

A-Digital Display

OUO6085,000018E -19-25JUN07-1/2

Understanding Optional Slip Clutch Alert System
PTO driveline sensor (A) measures input speed of the PTO driveline. Pickup drive sensor (B) measures output speed of the pickup slip clutch. The BALETRAK Pro monitor-controller compares these speeds, and activates slip alarm if speed drops below 10 percent of the calculated operating speed for more than one second.

Speed compensation of Wrapping

This system provides automatic compensation for twine and net application when wrapping at less than rated PTO speed.

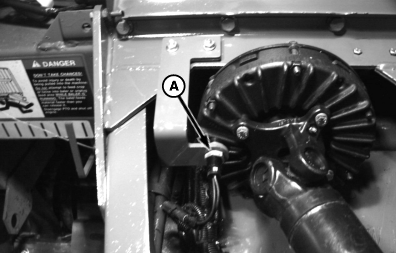

A-Driveline Sensor

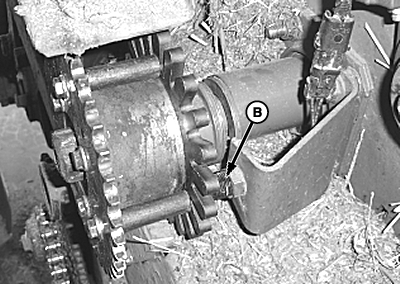

B-Pickup Drive Sensor

OUO6085,000018E -19-25JUN07-2/2
