Annually
Baler Wheel Bearings and Gathering Wheel Bearings (If Equipped)
Remove the wheels; then clean, repack, and adjust bearings. Use John Deere EP Moly or an equivalent SAE multipurpose type grease, or wheel bearing grease.
|

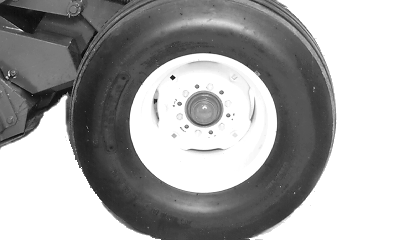

Baler Wheel Shown
|
|
|
OUO6085,00004F2 -19-17MAY06-1/4
|

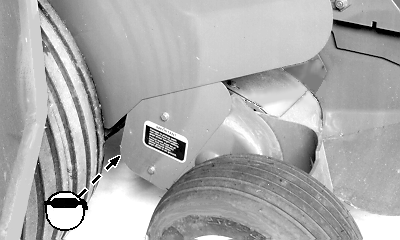

Pickup Idler Arm
|
Regular and MEGATOOTH™ (Right-Hand Side)
MEGAWIDE™ (Left-Hand Side)
|
|
|
OUO6085,00004F2 -19-17MAY06-2/4
|

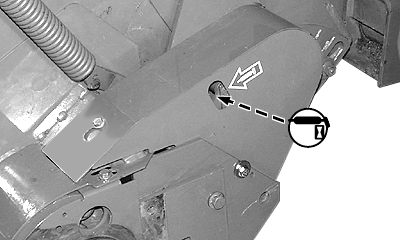

Pickup Lift Bellcrank Pivot
|
MEGAWIDE™ Shown
|
|
|
OUO6085,00004F2 -19-17MAY06-3/4
|

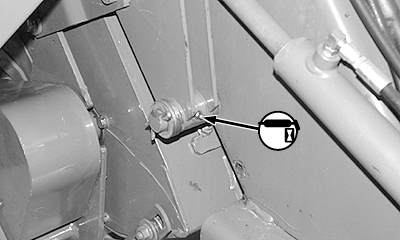

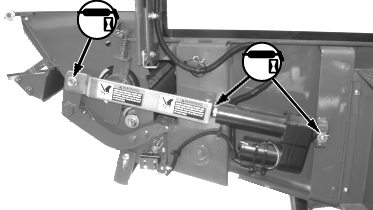

COVER-EDGE™ Net Wrap Actuator (If Equipped)
Lubricate rod end and base end actuator and link mounting pins with SAE 30 or heavier oil.
|
|
|
|
OUO6085,00004F2 -19-17MAY06-4/4
|
|
