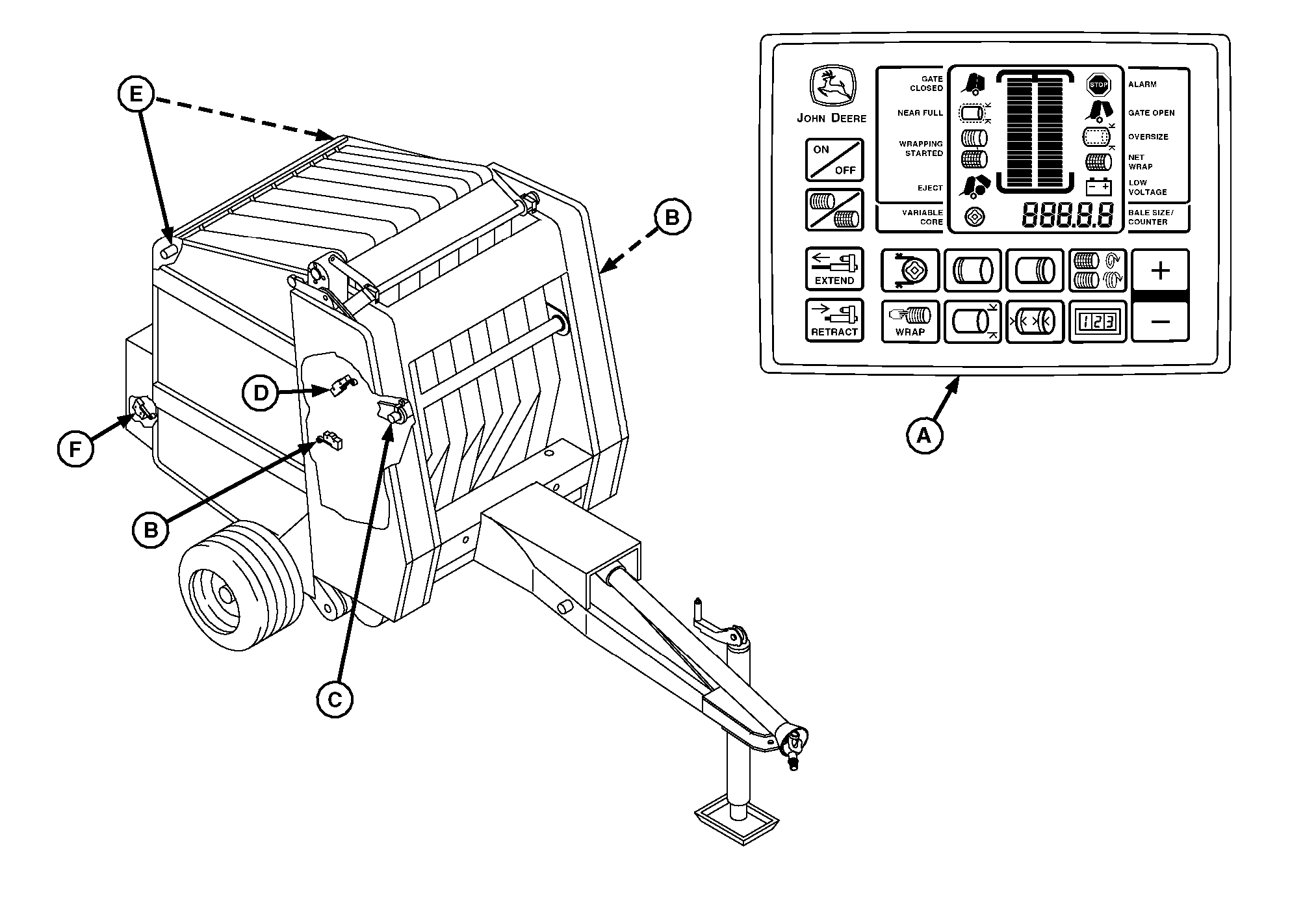

A-Monitor-Controller (located on tractor)

B-Gate Latch Switches
C-Bale Diameter Sensor

D-Oversize Bale Switch
E-Bale Shape Sensors

F-Net Wrap Switch (If Equipped)

Bale Trak is a registered trademark of Deere & Company

OUO6085,00004F5 -19-24JUL06-1/1
