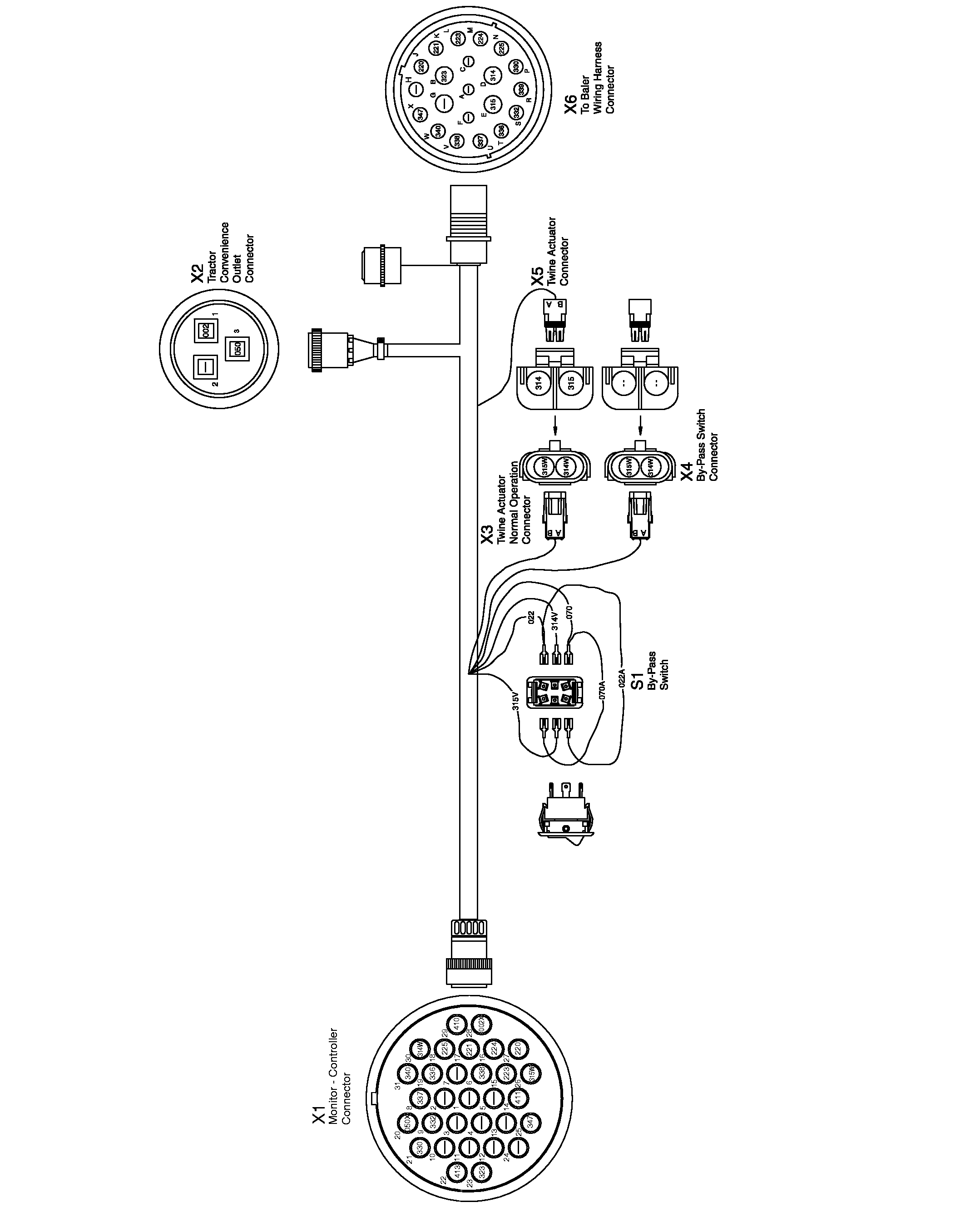

Wiring Harness Diagram-BALETRAK™ Pro Monitor-Controller

E52577

BaleTrak is a registered trademark of Deere & Company

OUO6085,00004F7 -19-24JUL06-1/2

X1 BALETRAK™ Pro Monitor-Controller Connector
Terminal Circuit Function Wire Color
1   Open
2   Open
3   Open
4   Open
5   Open
6 338 Right Bale Shape Sensor Gray
7   Open
8 337 Left Bale Shape Sensor Purple
9 332 Rotary Sensor Power Red
10   Open
11   Open
12   Open
13   Open
14 411 Spare Brown
15 223 Right Gate Switch Orange
16 224 Oversize Switch Yellow
17 221 Left Gate Switch Brown
18 225 Net Cut Switch Green
19 336 Bale Size Sensor Blue
20 050X Ground Black
21 330 Rotary Sensor Ground Black
22 413 Spare Orange
23 323 Net Actuator Orange
24   Open
25 347 Variable Core Valve Purple
26 315W Net and Twine Actuator Green
27 220 Switch Ground Black
28 002X Power Red
29 410 Spare Black
30 314W Twine Actuator Yellow
31 340 Variable CoreValve Ground Black



OUO6085,00004F7 -19-24JUL06-2/2
