Install Left-Hand Upper Drive Roll Bearing

IMPORTANT: To prevent bearing failure, always loosen the three RIGHT SIDE flange mounting bolts (G) before tightening left side (drive side) center bolt (F). Adjust and tighten right side mounting bolts per this instruction AFTER left side is tightened.

1. Install spacer (A) with chamfer pointing towards center of baler. Ensure there are enough washers (B) behind bearing to center drive roll in baler. Washers must completely fill gap between roll and bearing.

2. Locate housing with "UP" (C) towards top of baler.

3. Tighten flange nuts (D) to specification.

Specification

4. Install washer (E) between sprocket and bearing to obtain correct chain alignment.

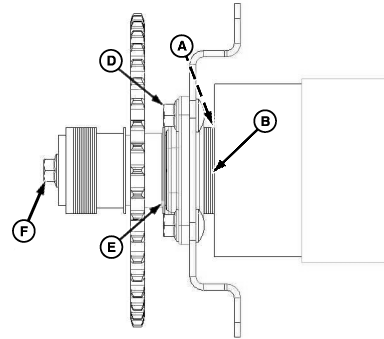

A-Spacer With Chamfer
B-Washers

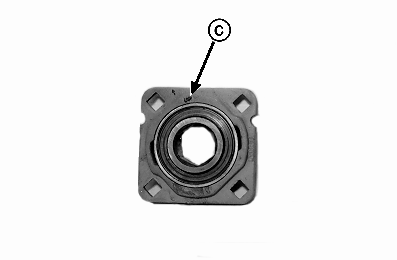

C-"UP" Stamped Into Casting
D-Flange Bolt (4 used)
E-Washers
F-Center Bolt

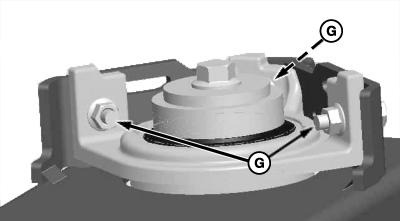

G-Right-Hand Bearing Flange Bolts

OUO6085,0000642 -19-25JUL07-1/2

IMPORTANT: To avoid center bolt (C) loosening or hex knock, keep thin washers (A) centered about shaft.

5. Install washers (A) between sprocket and end of shaft so washers are flush with end of shaft. Add a thick, large ID washer (B), over the shaft. Install center bolt (C) with end washer. Tighten bolt to specification.

Specification

6. Tighten right-hand mounting bolts as described in Steps 7 and 8 of "Install Right-Hand Drive Roll Bearing" in Service section.

A-Washers
B-Thick Large Washer (Over Shaft)
C-Bolt and End Washer

OUO6085,0000642 -19-25JUL07-2/2
