Adjusting Net Wrap Feed Roll Pressure

1. Open net wrap cover.

2. Pull lever (A) out and up to disengage roller brake pad (B).

3. Remove any foreign material or net wrap from between the rolls.

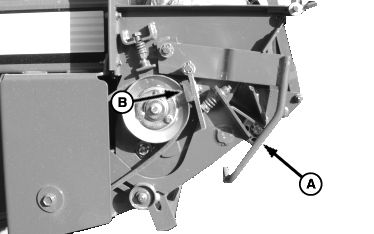

A-Brake Lever
B-Brake Pad

E54537

OUO6085,0000733 -19-07MAY07-1/2

NOTE: Too much pressure can cause net wrap to wrap on rubber roll. A lack of pressure will prevent net wrap from being fed by the rolls to the bale or may cause poor placement of net wrap material on the bale.

4. Adjust spring length by loosening or tightening spring adjusting nut (B) until dimensions (A) and (C) are within specifications.

Specification

Feed Roll Spring -Distance 20.5 mm (0.807 in.)

Specification

Bolt Head to Bracket -Distance 1-5 mm (0.039-0.197 in.)

5. Repeat on opposite side.

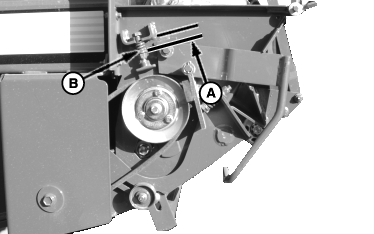

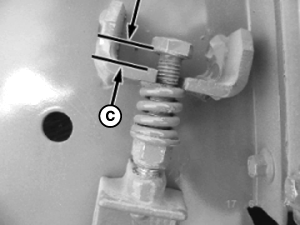

A-Distance
B-Adjusting Nut
C-Distance

E54538
E55138
