Checking and Adjusting Lower Net Wrap Guide

IMPORTANT: If clearance (A) is insufficient, slitting of net material may occur.

1. Check that belts are not pinched between lower belt guides straps (A) and crossbar (B). Tighten nuts on both sides of corssbar.

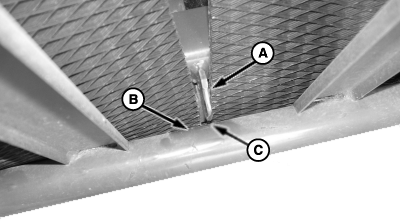

A-Strap
B-Crossbar
C-Clearance

E55312

OUO6085,000073D -19-24JUL07-1/3

IMPORTANT: Always check adjustment in Step 2 before performing Step 3.

NOTE: Use 4 mm drill bit as a gauge to check clearance between guide straps and crossbar.

2. Check and adjust clearance between ends of all belt guide straps and bottom crossbar. Clearance must be within specifications.

Specification

Ends of Belt Guides-to-Bottom Crossbar -Clearance 3-5 mm (1/8-3/16 in.)

To obtain clearance:

a. Loosen lock nut (A) and nut (B).

b. Add or subtract washer (G) and shims (C) on each side as needed.

c. Tighten nut (B). Then tighten lock nut (A) on both sides.

d. Recheck clearance on both sides and adjust as needed.

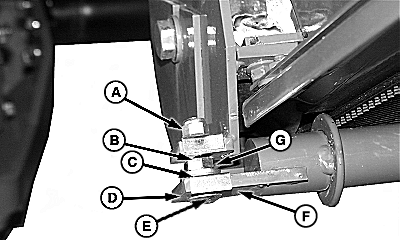

E49028


A-Lock Nut, M10
B-Nut, M10
C-Shims
D-Shims-Storage Position
E-Round-Head Bolt, M10 x 50
F-Crossbar Mounting Bracket
G-Washer, 10.50 x 18 x 1.60 mm

OUO6085,000073D -19-24JUL07-2/3

IMPORTANT: If 0.5-2.5 mm (0.020-0.100 in.) clearance (A) is exceeded, outside belts will pass between belt guide washer (B) and guide (C).

3. Check clearance (A) between guide washer (B) and lower net wrap guide (C). Clearance should be within specifications.

Specification

Belt Guide Washer-to-Lower Net Wrap Guide -Clearance 0.5-2.5 mm (0.020-0.100 in.)

4. If clearance is not within specifications, loosen nut (E) and add or subtract shims (F) between net wrap guide (C) and deflector (D), as necessary. Tighten nut (E).

5. Recheck belt guide washer-to-lower net wrap guide clearance (A), on both sides and adjust if necessary.

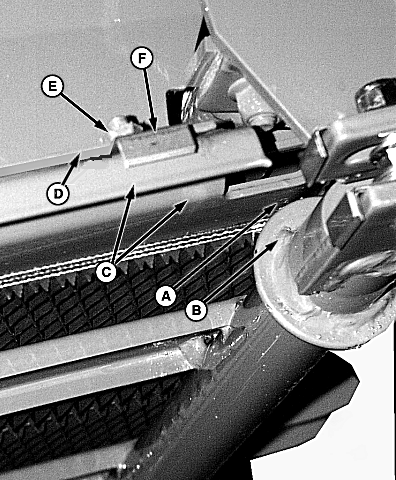

A-Clearance
B-Belt Guide Washer
C-Lower Net Wrap Guide
D-Deflector
E-Nut
F-Shims

E55141

OUO6085,000073D -19-24JUL07-3/3
