Straighten Net Pan Channels

1. Remove net pan from baler. (See Remove Net Wrap Assembly in your Technical Manual.)

2. Remove leaf spring by removing two cotter pins. Lay net pan flat on a level surface.

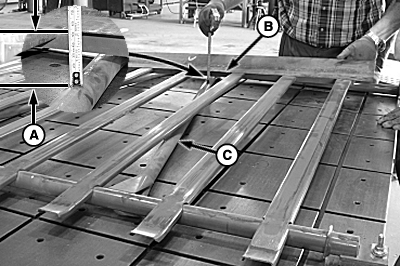

3. Measure distance (A) between top of net pan angle (B) and top of both tubes (C). Distance (A) should be 52 ± 5 mm (2.0 ± 0.2 in.).

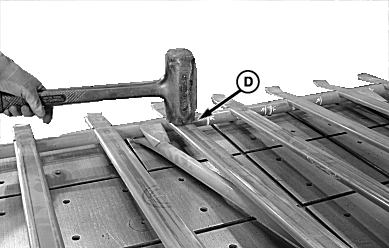

4. If distance (A) is more or less than listed, use a dead blow hammer, tap on net pan channels (D) near front cross bar. If bend is opposite direction, turn pan over and tap on bottom of channel.

5. Straighten channels (D) to obtain distance measured in Step 3.

6. Install leaf spring and net pan in reverse order as removed. After installing net pan:

  • See Checking and Adjusting Lower Net Wrap Guide
  • See Checking Belt Tracking
  • See Checking and Adjusting Net Pan Pressure
E55334
E55335


A-Distance, 52 ± 5 mm (2.0 ± 0.2 in.)
B-Net Pan Angle
C-Support Tube (2 used)
D-Net Pan Channel (near front crossbar)

OUO6085,00007E5 -19-25JUL07-1/1
