Wheel Spindle Positions-MEGAWIDE™ Plus Pickup With 31 x 13.5-15 Tires
Normal position
(A) is recommended for most baling conditions.
-
Recommended for push bar.
-
Pickup teeth may touch the ground with pickup completely lowered depending on tractor drawbar height.
Raised position
(B) is recommended for straw crops with tall stubble and soft ground conditions.
-
Recommended for push bar.
-
Pickup teeth will not touch the ground with pickup completely lowered.
-
Tighten nuts to specification.
Specification
|
Wheel Spindle Mounting Hardware
-Torque
|
237 N·m (175 lb-ft)
|
-
Install tires. (See TIRE INSTALLATION AND WHEEL NUT TORQUE in this section.)

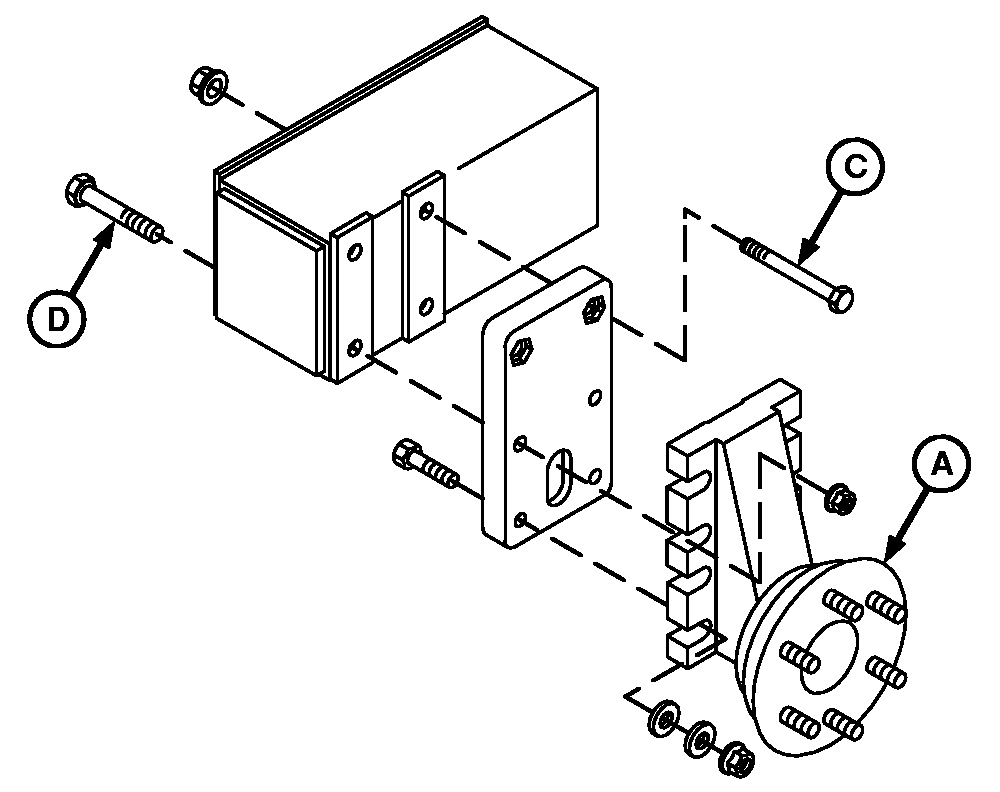

A-Normal Position

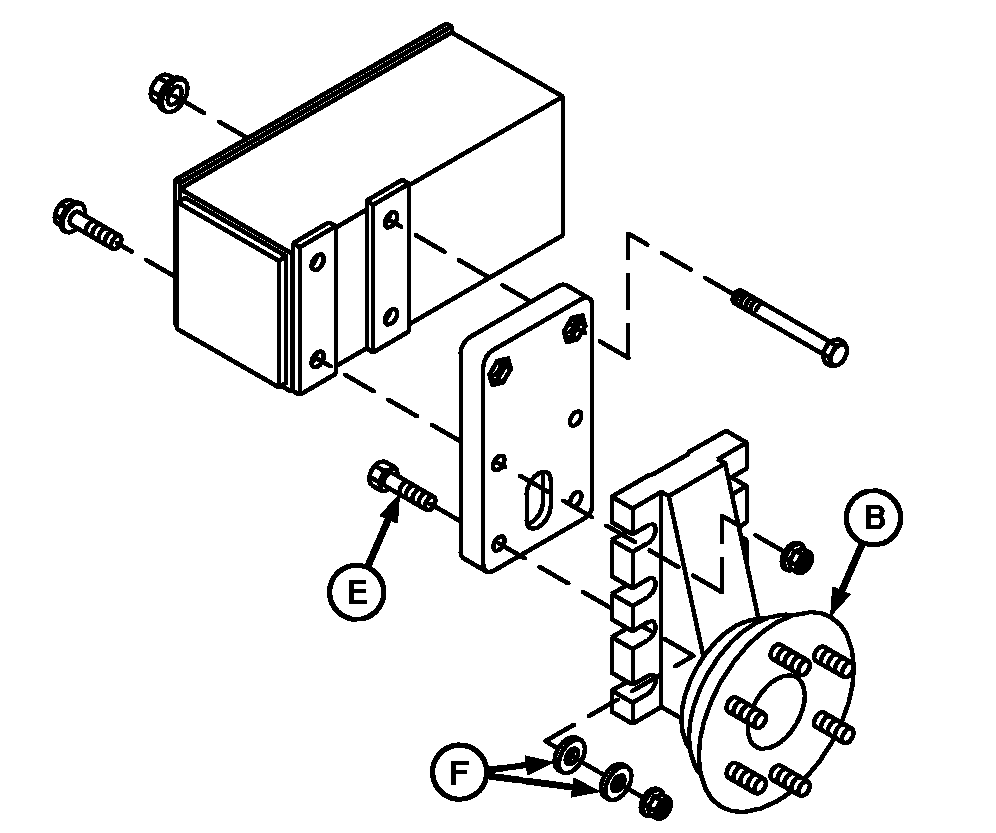

B-Raised Position
C-Flange Head Cap Screw, M16 x 150-8.8 (2 used)
D-Flange Head Cap Screw, M16 x 180-10.9 (2 used)
E-Cap Screw, M16 x 60-8.8 (2 used, 468 only)
F-Washer 17 x 34 x 4 mm (4 used, 568 only)
|
