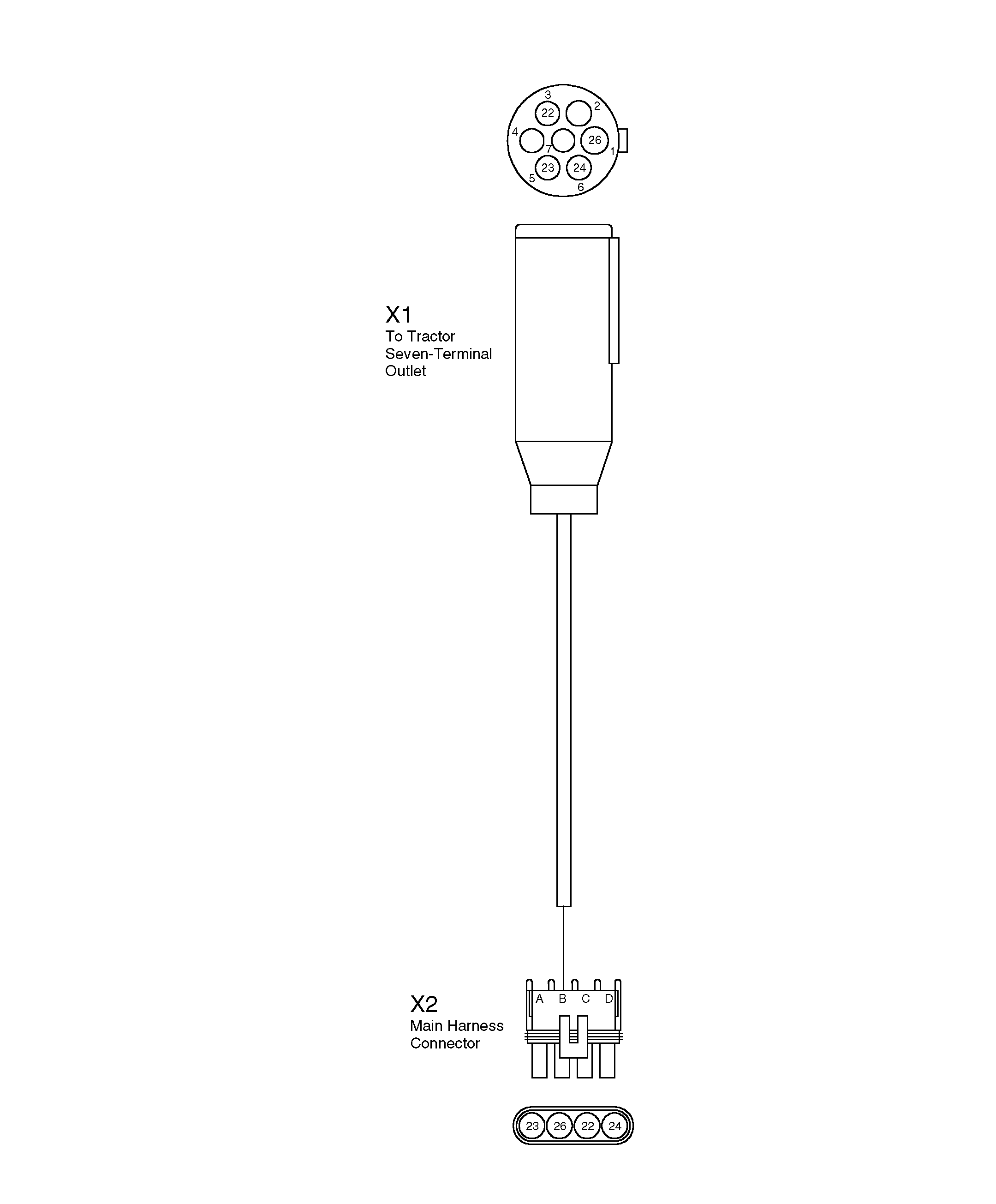

Tail/Warning Light Wiring Harness Diagram—Power Supply
E46638-19-21OCT99
|
X1 Tractor Seven-Terminal Outlet |
|||
|---|---|---|---|
|
Terminal |
Circuit |
Function |
Wire Color |
|
1 |
26 |
Ground |
Black |
|
2 |
Open |
||
|
3 |
22 |
Left-Hand Warning Light |
Yellow |
|
4 |
Open |
||
|
5 |
23 |
Right-Hand Warning Light |
Green |
|
6 |
24 |
Tail/Turn Lights |
Brown |
|
7 |
Open |
||
|
X2 Main Harness Connector |
|||
|---|---|---|---|
|
Terminal |
Circuit |
Function |
Wire Color |
|
A |
23 |
Right-Hand Warning Light |
Green |
|
B |
26 |
Ground |
Black |
|
C |
22 |
Left-Hand Warning Light |
Yellow |
|
D |
24 |
Tail/Turn Lights |
Brown |
|
