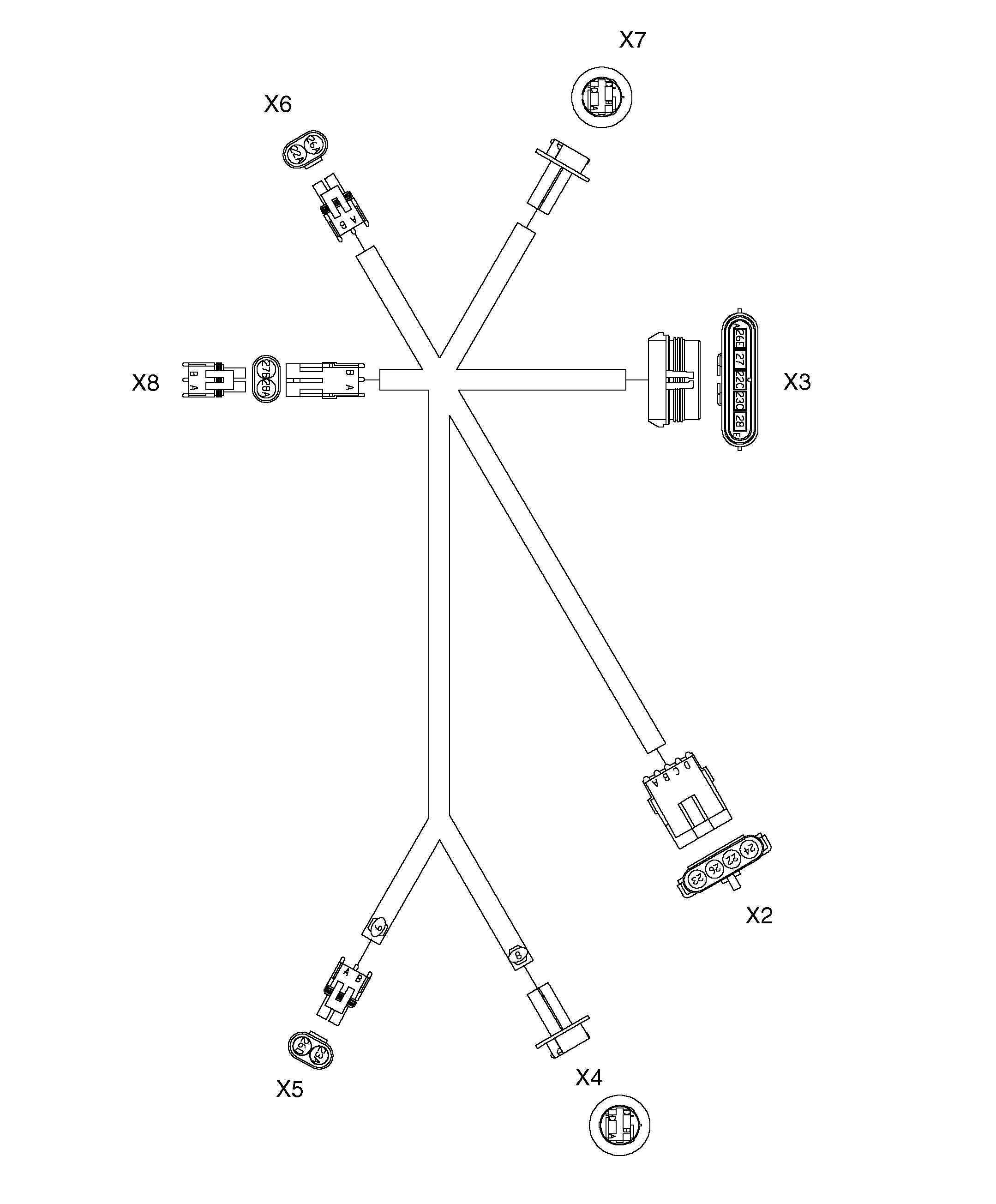

Tail/Warning Light Wiring Harness Diagram —Main

E48110-19-15JUN00

X2 Main Harness Connector
Terminal	Circuit	Function	Wire Color
A	23	Right-Hand Warning Light	Green
B	26	Ground	Black
C	22	Left-Hand Warning Light	Yellow
D	24	Tail/Turn Lights	Brown

X3 Lighting Enhancement Module Connector
Terminal	Circuit	Function	Wire Color
A	26E	Ground	Black
B	27	Ground—Left-Hand Turn	Purple
C	22C	Power—Left-Hand Warning	Yellow
D	23C	Power—Right-Hand Warning	Green
E	28	Ground—Right-Hand Turn	Orange

X4 Right-Hand Tail/Turn Signal
Function	Circuit	Function	Wire Color
A	23B	Power—Right-Hand Warning	Green
B	24B	Power—Right-Hand Tail/Turn	Brown
C	26C	Ground	Black
D	28	Ground—Right-Hand Turn	Orange

X5 Right Hand Warning Light
Terminal	Circuit	Function	Wire Color
A	26D	Ground	Black
B	23A	Power—Right-Hand Warning	Green

X6 Left-Hand Warning Light
Terminal	Circuit	Function	Wire Color
A	26A	Ground	Black
B	22A	Power—Left-Hand Warning	Yellow

X7 Left-Hand Tail/Turn Signal Light
Terminal	Circuit	Function	Wire Color
A	22B	Power—Left-Hand Warning	Yellow
B	24A	Power—Left-Hand Tail/Turn	Brown
C	26B	Ground	Black
D	27	Ground—Left-Hand Turn	Purple

X8 Endwise Transport Female Connector
Terminal	Circuit	Function	Wire Color
A	24C	Power	Brown
B	26F	Ground	Black
