Adjusting Platform Float

NOTE: Tongue must be centered over platform to correctly adjust platform float.

Adjust gauge shoes and top link before adjusting platform float.

Use lightest float setting that allows platform to remain firmly on the ground without bouncing. The platform should follow uneven ground without gouging or scraping. An initial starting point should be within specifications at each end of platform.

Item	Measurement	Specification
Initial Float Setting	Force	667 — 778 N (150 — 175 lb force)

1. Adjust gauge shoes and top link to desired settings. (See SETTINGS FOR VARIOUS CROP CONDITIONS in this section.)

2.

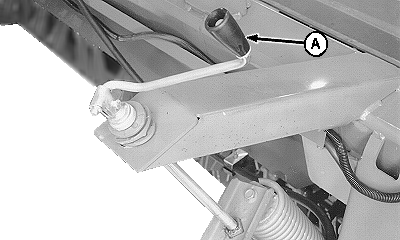

   E41323-UN-25JAN97

   Adjusting Position

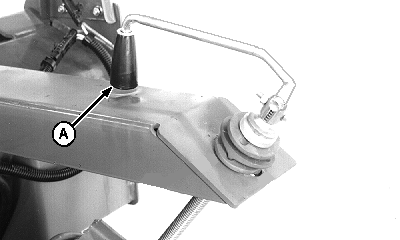

   E41350-UN-27JAN97

   Storage Position

   A - Crank

   Remove crank (A) from storage position.
   • Turn handle clockwise to decrease ground pressure
   • Turn handle counterclockwise to increase ground pressure



---




3. Return crank to storage position

4. Repeat on opposite side.
