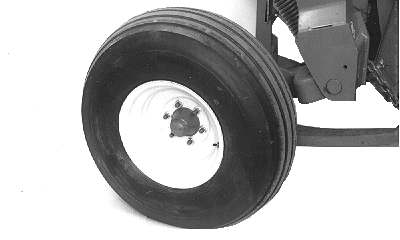

Changing Tire—Mower-Conditioner

E41343
E41343-UN-27JAN97

946 Shown

  1. Lower platform completely.

  2. Shut off tractor engine and remove key.

  3. Install floor jack under wheel arm frame.

  4. Raise frame and remove six wheel nuts and wheel.

  5. Install wheel with valve stem on wheel bolt side. Install and tighten nuts to specifications.

    ItemMeasurementSpecification
    Wheel NutsTorque240 N˙m (175 lb-ft)

  6. Lower machine and remove floor jack.

  7. Check tire inflation. (See Preparing the Mower-Conditioner section.)

IMPORTANT: Check wheel nut torque after the first 10 hours of use.

AG,OUO6039,800-19-20000714
