Assembling Main PTO Driveline Splined Telescoping Members (If Necessary)

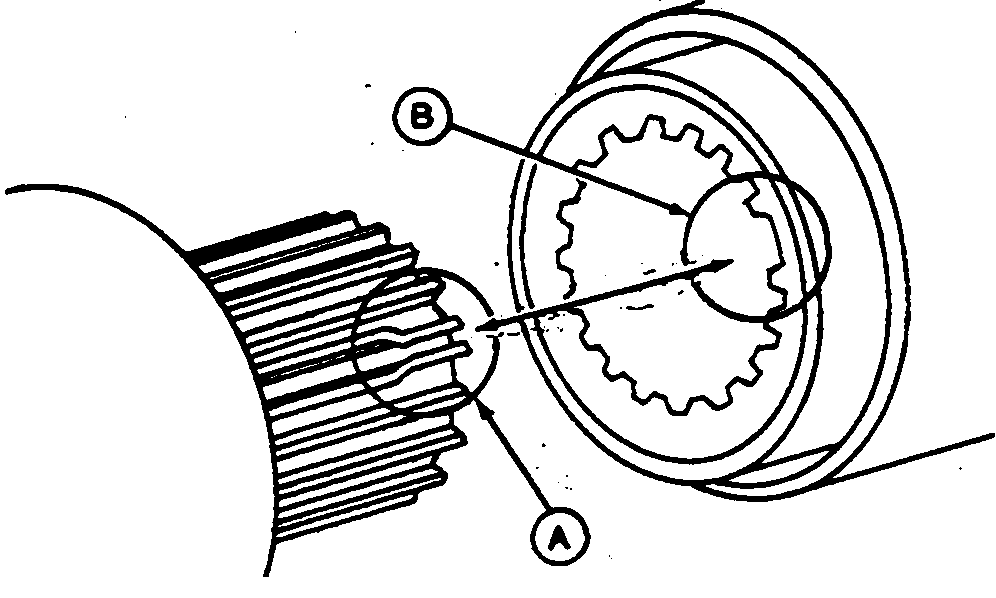

E23802
E23802-UN-22SEP88

A - Crimped Shaft Teeth

B - Groove in Sleeve

  1. Wipe excess grease from shaft and sleeve to see timing marks.

  2. Align crimped pair of shaft teeth (A) with locating groove in sleeve (B).

  3. Assemble telescoping members together.

  4. Apply multipurpose grease, or equivalent, to lubrication fitting at sleeve before operating. (See Lubrication and Maintenance section.)
