Positioning Hitch Pad (Two-Point Hitch)

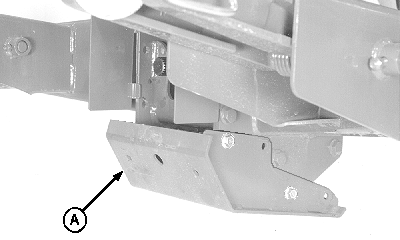

E41373-UN-24FEB97

"Low" Position (Standard)

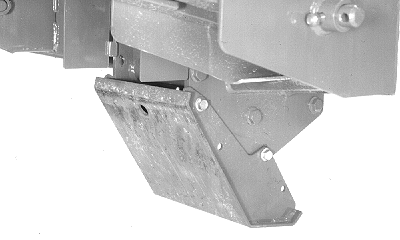

E41374-UN-03FEB97

"High" Position

A - Hitch Pad

NOTE: Hitch pad is factory installed in low (standard) position.

Hitch height can be adjusted to "high" position to aid in attaching hitch to tractor.

If necessary, position hitch pad to "high" position;

1. Raise front of tongue with a floor jack and install safety stands under hitch arms.

2. Remove four cap screws, nuts and pad (A).

3. Reinstall pad in "high" position, as shown. Fasten with existing cap screws and nuts.

4. Raise front of tongue, remove safety stands and lower tongue to ground.
